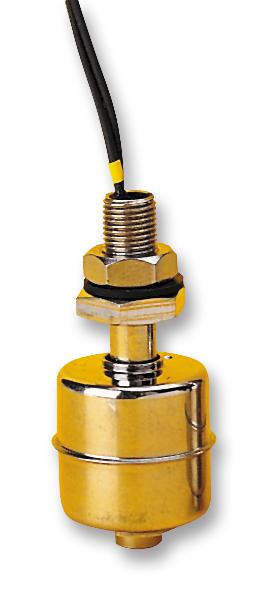

COMUS (ASSEMTECH) - RF3001A/VFS30 - Float Switch, RF3001A Series, Vertical, SPST-NC, Stainless Steel, 50 VA
- Operating Pressure Max: 10bar
- Sensor Body Material: Stainless Steel
- Output Current: 500mA
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Body Material: Stainless Steel
- Contact Configuration: SPST
- Contact Current AC Max: 1A
- Contact Voltage AC Max: 240V
- External Length / Height: 57mm
- Fixing Hole Diameter: 10mm
- Float Diameter: 28mm
- Lead Length: 0.3m
- Material: Stainless Steel 304
- Operating Pressure Range: 0bar to 10bar
- Operating Temperature Max: 120°C
- Operating Temperature Min: -10°C
- Power Rating: 50W
- Specific Gravity of Liquid Min: 0.75
- Switching Voltage AC / DC Max: 200VDC
- Switching Voltage AC / DC Min: 240VAC
