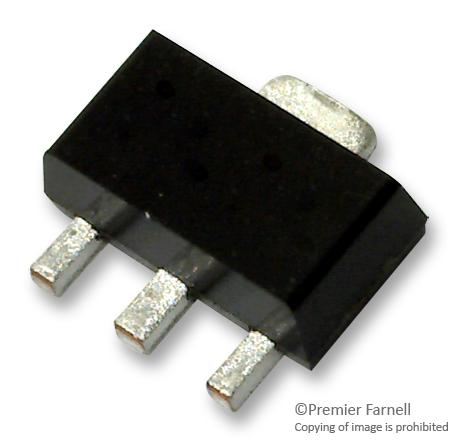

ROHM - RHP030N03T100 - Power MOSFET, N Channel, 30 V, 3 A, 0.12 ohm, MPT, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 3A
- Drain Source Voltage Vds: 30V
- On Resistance Rds(on): 0.12ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 2.5V
- Power Dissipation Pd: 500mW
- Transistor Case Style: MPT
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Capacitance Ciss Typ: 160pF
- Fall Time tf: 4.5ns
- On State resistance @ Vgs = 10V: 120mohm
- Pin Configuration: S(1), G(2), D(3)
- Pulse Current Idm: 10A
- Rise Time: 11ns
- Termination Type: Surface Mount Device
- Transistor Type: Protected MOSFET
- Voltage Vds Typ: 30V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Max: 2.5V
- Voltage Vgs th Min: 1V
