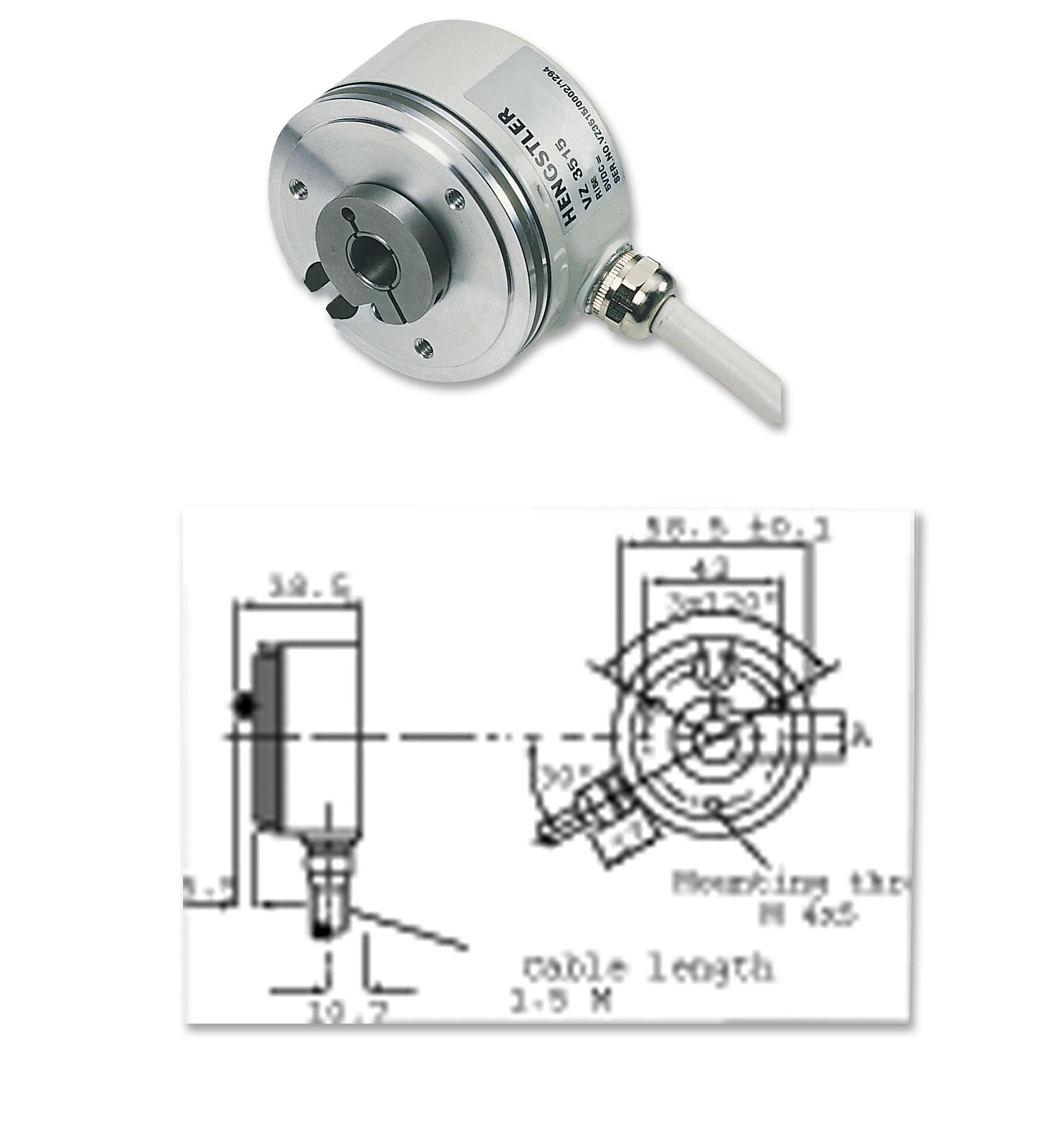

HENGSTLER - RI58-D/1000ED.32IB - Rotary Encoder, Optical, Incremental, 1000 PPR, 0 Detents, Horizontal, Without Push Switch
- Supply Voltage Min: 10V
- Supply Voltage Max: 30V
- No. of Channels: 3Channels
- Rotational Speed Max: 4000rpm
- Product Range: -
- SVHC: No SVHC (07-Jul-2017)
- Body Diameter: 58.5mm
- Connector Type: Cable
- Current Consumption: 60mA
- Encoder Resolution: 1000
- External Length / Height: 38.5mm
- Lead Length: 1.5m
- Load Current: 30mA
- No. of Pulses Per Revolution: 1000
- Operating Temperature Max: 70°C
- Operating Temperature Min: -10°C
- Operating Temperature Range: -10°C to +70°C
- Output Voltage: 3V
- Pulse Output Count: 1000
- Rotational Speed: 6000rpm
- Shaft Diameter: 10mm
- Torque: 0.02N-m
- Type: Incremental Encoder
