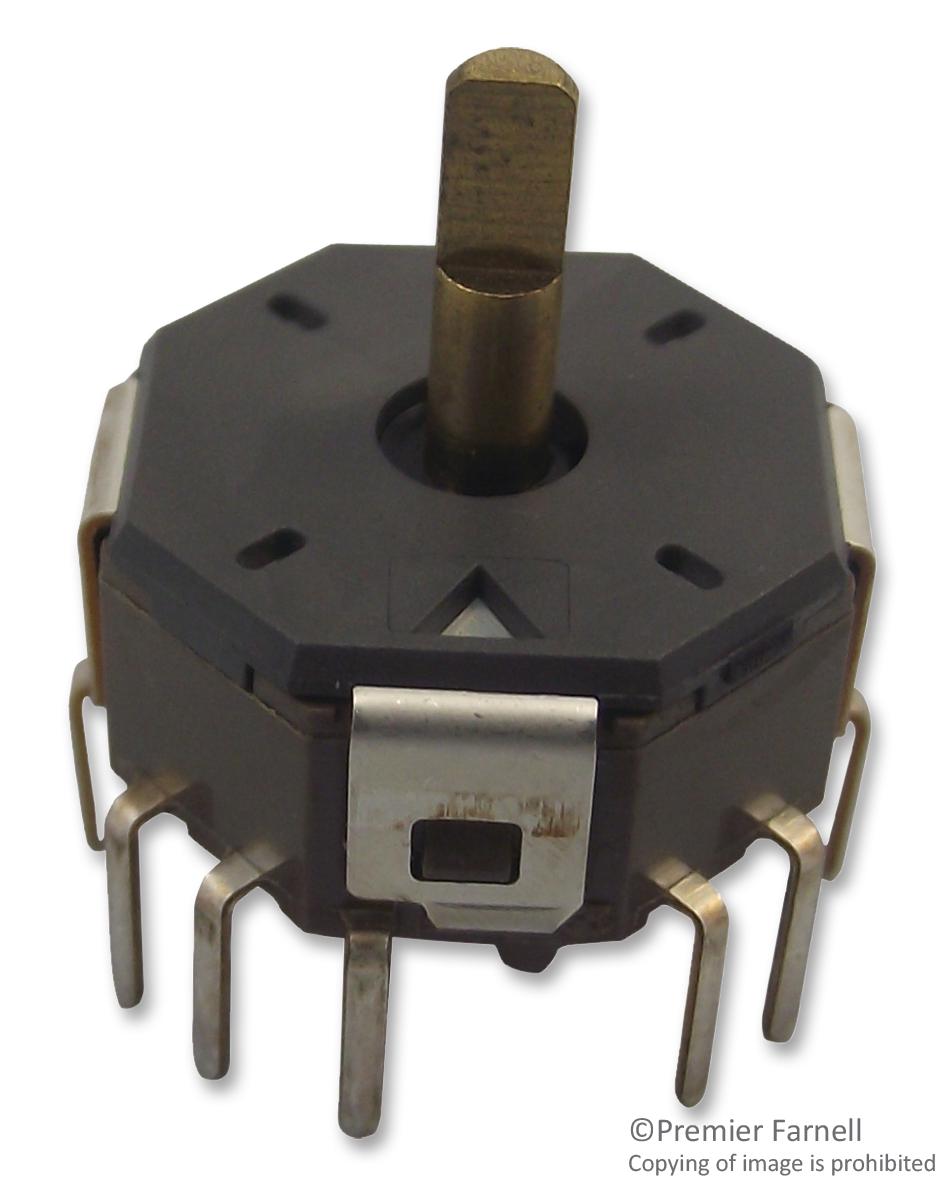

RKJXL100401V Navigation Switch, 9WAY Alps Alpine

ALPS ALPINEUGS :RKJXL100401V Code de commande:1435770

Prix:
Prix ​​promotionnel€14,80

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (188 unité)

Documents et téléchargements

description

ALPS ALPINE - RKJXL100401V - Navigation Switch, 10 N, 5 V, 10 mA, Solder, 8

  • Operating Force: 10N
  • Contact Voltage AC Nom: -
  • Contact Voltage DC Nom: 5V
  • Contact Current Max: 10mA
  • Switch Terminals: Solder
  • No. of Directions: 8
  • Product Range: RKJXL Series
  • SVHC: No SVHC (20-Jun-2016)
  • Actuation Type: Lever
  • Actuator Type: Lever
  • Angle: 12°
  • Contact Current DC Max: 10mA
  • External Depth: 14.8mm
  • External Length / Height: 13.4mm
  • External Width: 15mm
  • Height: 6.4mm
  • Insulation Resistance Voltage: 250VDC
  • No. of Electrical Operations: 100000
  • No. of Mechanical Operations: 100000
  • No. of Positions: 8Ways
  • Operating Force Max: 4.5N
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -30°C
  • Proof Voltage: 300VAC
