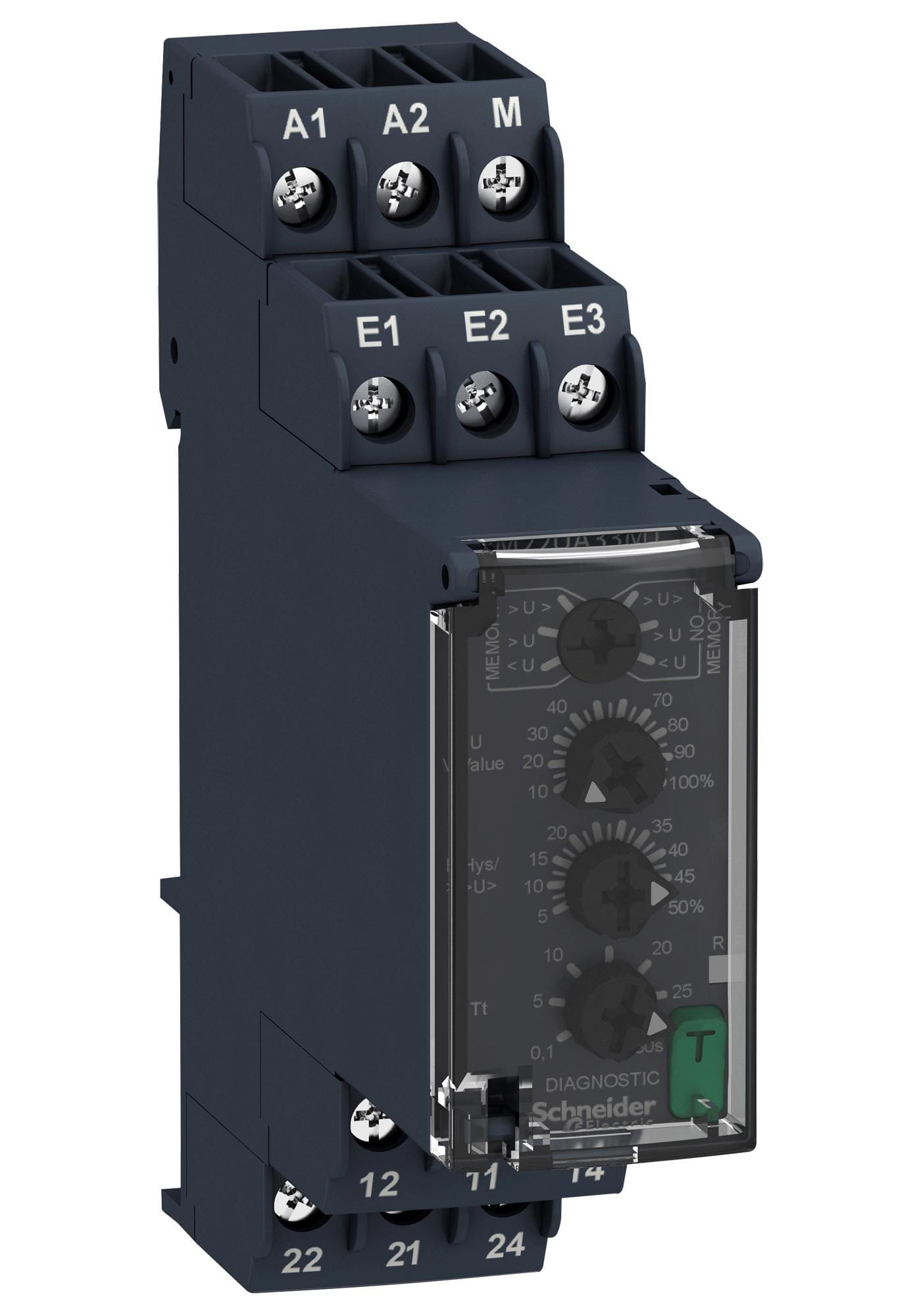

SCHNEIDER ELECTRIC - RM22UA33MT - Phase Monitoring Relay, Zelio RM22UA, DPDT, 8 A, DIN Rail, Screw, 250 VAC
- Product Range: Zelio RM22UA Series
- Contact Configuration: DPDT
- Contact Current: 8A
- Relay Mounting: DIN Rail
- Relay Terminals: Screw
- Switching Voltage Max: 250VAC
- Supply Voltage Max: 415VAC
- Phase Type: 1 Phase
- Power Consumption: 8VA
- Phase Monitoring Range Min: 15V
- Phase Monitoring Range Max: 500V
- SVHC: No SVHC (15-Jan-2018)
- Approvals & Standards: EN, IEC
