description

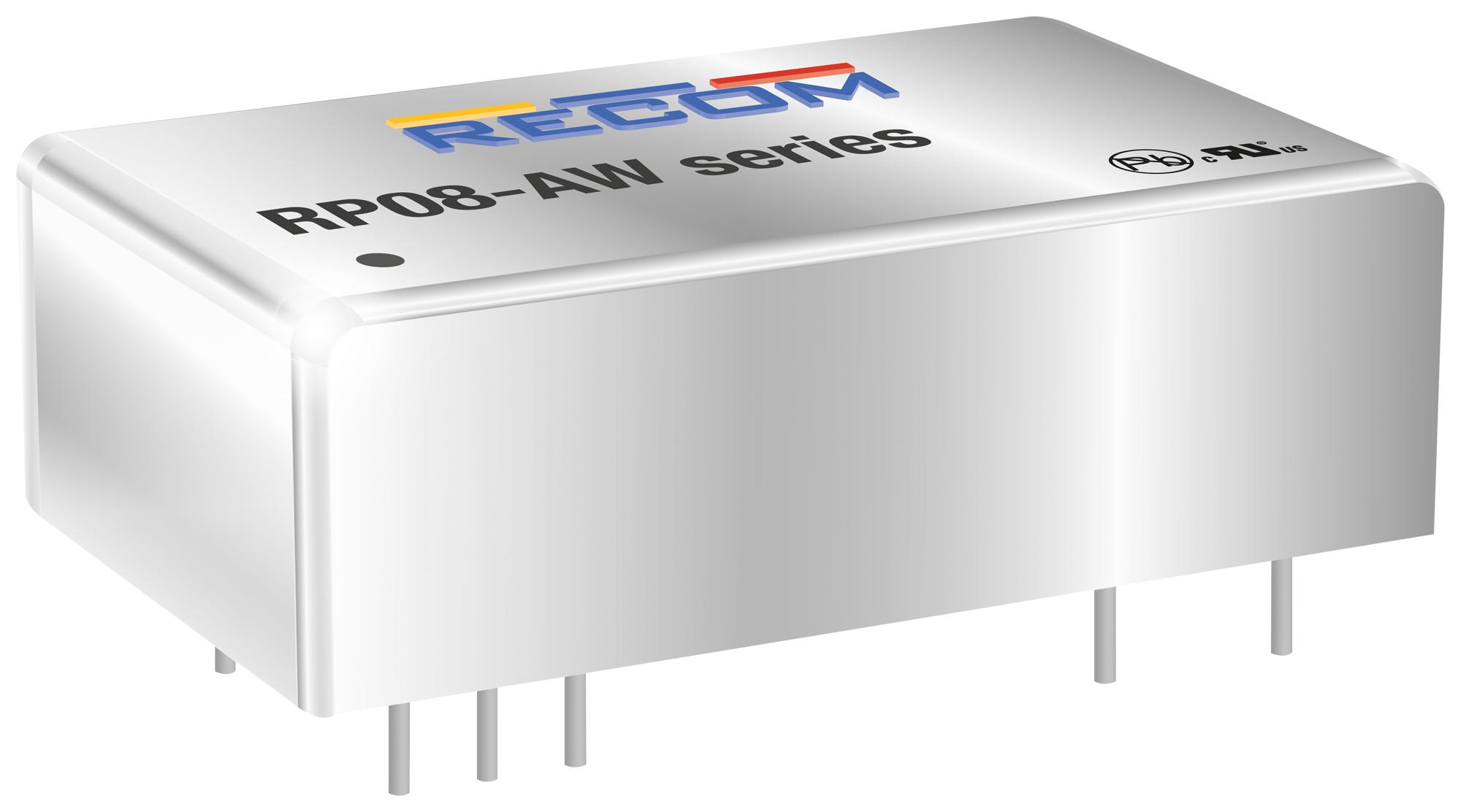

RECOM POWER - RP08-2415SAW - Isolated Through Hole DC/DC Converter, ITE, 4:1, 8 W, 1 Output, 15 V, 533 mA
- No. of Outputs: 1 Output
- Output Power Max: 8W
- Output Voltage - Output 1: 15V
- Output Current - Output 1: 533mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: RP08-AW Series
- Input Voltage DC Min: 9V
- Input Voltage DC Max: 40V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 20.3mm
- Height: 10.2mm
- Depth: 31.8mm
- SVHC: No SVHC (15-Jan-2019)
