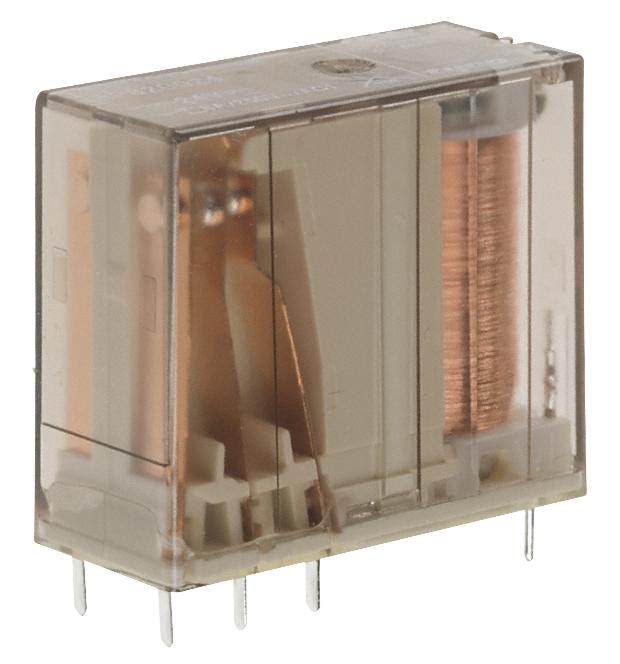

RP821024 Relay, DPDT, 250VAC, 8A SCHRACK - Te Connectivity

SCHRACK - TE CONNECTIVITYUGS :RP821024 Code de commande:1197647

Prix:
Prix ​​promotionnel€15,36

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (392 unité)

Documents et téléchargements

description

SCHRACK - TE CONNECTIVITY - 1393845-5 - Power Relay, DPDT, 24 VDC, 8 A, RPII/2, Through Hole, Non Latching

  • Contact Configuration: DPDT
  • Coil Voltage: 24VDC
  • Contact Current: 8A
  • Product Range: RPII/2 Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: -
  • Contact Material: Silver Nickel Oxide
  • Coil Resistance: 1.1kohm
  • SVHC: No SVHC (12-Jan-2017)
  • Approval Category: IP67
  • Coil Current: 21.8mA
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 8A
  • Contact Current DC Max: 8A
  • Contact Current Max: 8A
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 43.2V
  • DC Coil Power: 500mW
  • External Depth: 25.5mm
  • External Height: 29mm
  • External Length / Height: 29mm
  • External Width: 12.6mm
  • Nom Operating Power: 500mW
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Operating Time: 8ms
  • Relay Type: Power - General Purpose
  • Release Time: 2ms
