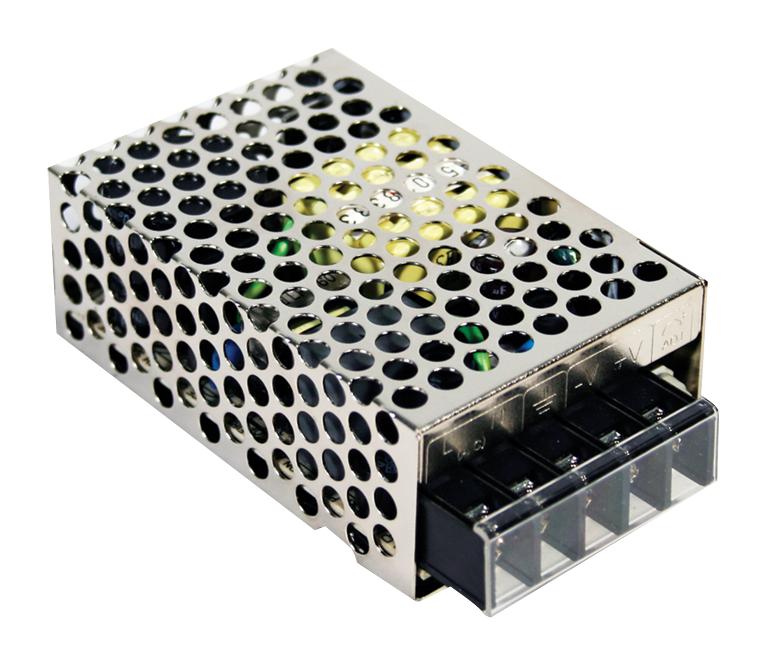

Rs-25-5 Power Supply, AC-DC, 5V, 5A Mean Well

MEAN WELLUGS :RS-25-5 Code de commande:2816014

Prix:
Prix ​​promotionnel€20,97

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1434 unité)

description

MEAN WELL - RS-25-5 - AC/DC Enclosed Power Supply (PSU), ITE, 1 Outputs, 25 W, 5 V, 5 A

  • No. of Outputs: 1Outputs
  • Output Power Max: 25W
  • Output Voltage - Output 1: 5V
  • Output Current - Output 1: 5A
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Output Voltage - Output 4: -
  • Current, Output 4: -
  • Input Voltage VAC: 85V AC to 264V AC
  • Power Supply Output Type: Adjustable, Fixed
  • Product Range: RS-25 Series
  • SVHC: No SVHC (07-Jul-2017)
  • Applications: General Purpose
  • Approval Bodies: TUV, UL
  • Efficiency: 77%
  • External Depth: 28mm
  • External Length / Height: 79mm
  • External Width: 51mm
  • Frequency Max: 63Hz
  • Frequency Min: 47Hz
  • Height: 28mm
  • Input Current: 0.4A
  • Input Frequency: 63Hz
  • Input Voltage AC Max: 264V
  • Input Voltage AC Min: 85V
  • Input Voltage Max: 264VAC
  • Input Voltage Min: 88VAC
  • Leakage Current: 2mA
  • Length: 79mm
  • Line Regulation: 0.5%
  • Load Regulation: 1.0%
  • No. of Outputs: 1 Output
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -20°C
  • Output Current: 5A
  • Output Current Max: 5A
  • Output Voltage: 5V
