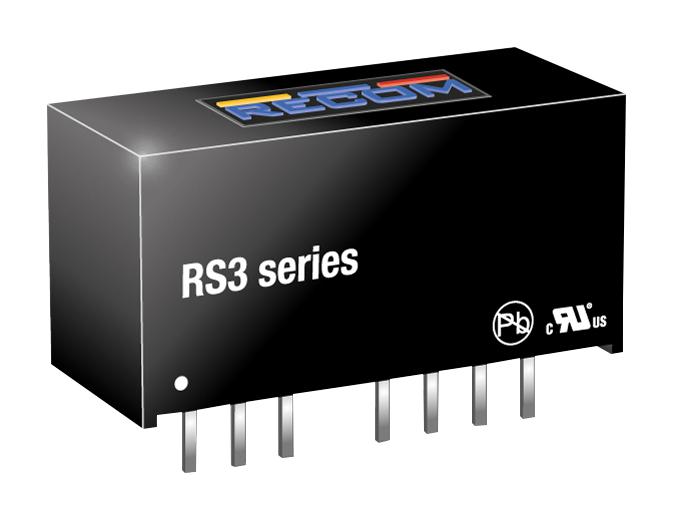

RECOM POWER - RS3-2412S/H3 - Isolated Through Hole DC/DC Converter, Medical, 2:1, 3 W, 1 Output, 12 V, 250 mA
- No. of Outputs: 1 Output
- Output Power Max: 3W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 250mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: RS3 Series
- Input Voltage DC Min: 18V
- Input Voltage DC Max: 36V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: SIP
- DC / DC Converter Mounting: Through Hole
- Width: 9.2mm
- Height: 11.1mm
- Depth: 21.8mm
- SVHC: No SVHC (15-Jan-2019)
- Approvals & Standards: CSA, EN, UL
