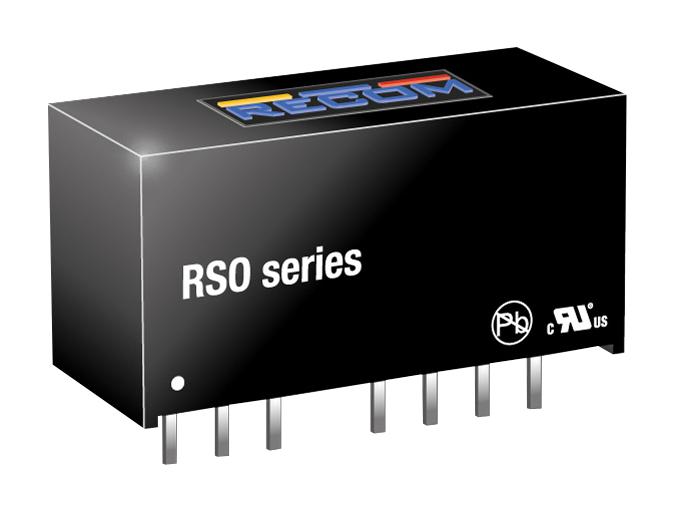

RECOM POWER - RSO-1215DZ - Isolated Through Hole DC/DC Converter, Medical, 4:1, 1 W, 2 Output, 15 V, 34 mA
- No. of Outputs: 2 Output
- Output Power Max: 1W
- Output Voltage - Output 1: 15V
- Output Current - Output 1: 34mA
- Output Voltage - Output 2: -15V
- Output Current - Output 2: 34mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: RSO Series
- Input Voltage DC Min: 9V
- Input Voltage DC Max: 18V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: SIP
- DC / DC Converter Mounting: Through Hole
- Width: 9.2mm
- Height: 11.1mm
- Depth: 21.8mm
- SVHC: No SVHC (15-Jan-2019)
- Approvals & Standards: CSA, EN, IEC, UL
