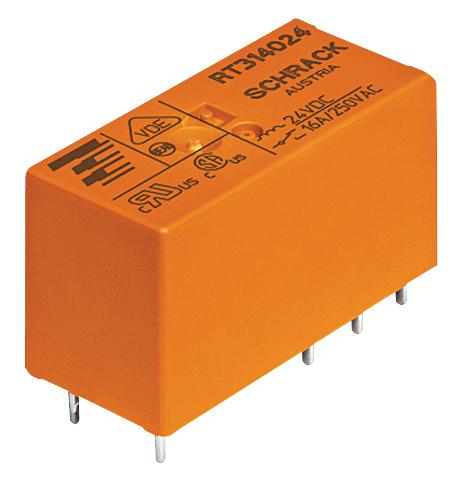

SCHRACK - TE CONNECTIVITY - RT314024 - General Purpose Relay, Power PCB Relay RT1 Series, Power, Non Latching, SPDT, 24 VDC, 16 A
- Contact Configuration: SPDT
- Coil Voltage: 24VDC
- Contact Current: 16A
- Product Range: RT1 Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: -
- Contact Material: Silver Nickel
- Coil Resistance: 1.44kohm
- SVHC: No SVHC (15-Jan-2019)
- Approvals & Standards: CSA, UL, VDE
- Coil Voltage VDC Nom: 24V
- Contact Current Max: 30A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 250V
- Current Rating: 16A
- Dielectric Voltage Coil to Contact: 5000V
- Dielectric Voltage Contact to Contact: 1000V
- External Depth: 12.7mm
- External Height: 15.7mm
- External Width: 29mm
- Nom Operating Power: 400mW
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Time: 8ms
- Relay Type: Power - General Purpose
- Release Time: 6ms
- Row Pitch: 7.5mm
