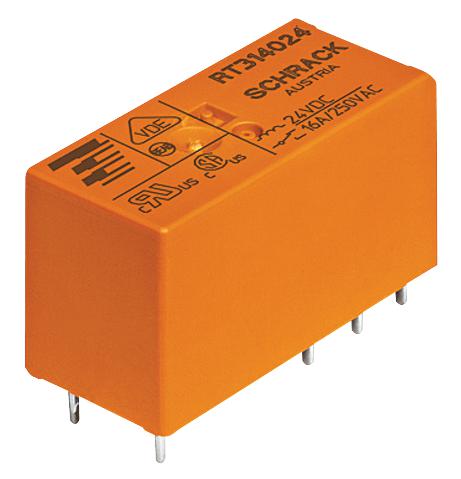

SCHRACK - TE CONNECTIVITY - 1649328-6 - General Purpose Relay, Power PCB Relay RT1 Series, Power, Non Latching, SPDT, 24 VDC, 16 A
- Contact Configuration: SPDT
- Coil Voltage: 24VDC
- Contact Current: 16A
- Product Range: RT1 Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: -
- Contact Material: Silver Nickel
- Coil Resistance: 1.44kohm
- SVHC: No SVHC (27-Jun-2018)
- Approvals & Standards: CSA, UL, VDE
- Coil Current: 16.7mA
- Coil Operating Lower Percent Limit: 70%
- Coil Operating Upper Percent Limit: 175%
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 16A
- Contact Current Max: 16A
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 30V
- DC Coil Power: 400mW
- External Depth: 12.7mm
- External Height: 15.7mm
- External Length / Height: 29mm
- External Width: 29mm
- Lead Spacing: 5.0mm
- Nom Operating Power: 400mW
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Operating Time: 7ms
- Relay Type: Power - General Purpose
- Release Time: 3ms
- Row Pitch: 7.5mm
