description

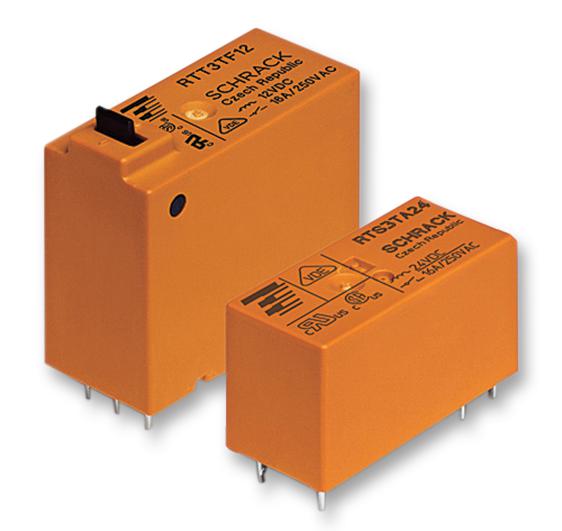

SCHRACK - TE CONNECTIVITY - 1415898-1 - Power Relay, SPST-NO, 24 VDC, 16 A, RT1 Inrush Power Series, Through Hole, Non Latching
- Contact Configuration: SPST-NO
- Coil Voltage: 24VDC
- Contact Current: 16A
- Product Range: RT1 Inrush Power Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: -
- Contact Material: Tungsten, Silver Tin Oxide
- Coil Resistance: 1.44kohm
- SVHC: No SVHC (15-Jan-2019)
- Approval Category: UL Recognised
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 16A
- Contact Current Max: 16A
- Contact Voltage AC Max: 400V
- Contact Voltage AC Nom: 240V
- Current Rating: 16A
- DC Coil Power: 400mW
- Dielectric Voltage Coil to Contact: 4000VAC
- Dielectric Voltage Contact to Contact: 1250VAC
- External Depth: 12.7mm
- External Height: 15.7mm
- External Length / Height: 15.7mm
- External Width: 29mm
- Flammability Rating: UL94V-0
- Must Actuate Voltage: 16.8VDC
- No. of Mechanical Operations: 5000000
- No. of Pins: 6Pins
- Nom Operating Power: 400mW
- Operating Frequency Max: 1Hz
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
