RTZ.2080G LED Array, Vertical, X8, Green Mentor

MENTORUGS :RTZ.2080G Code de commande:1215800

Prix:
Prix ​​promotionnel€10,68

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (593 unité)

Documenten en downloads

description

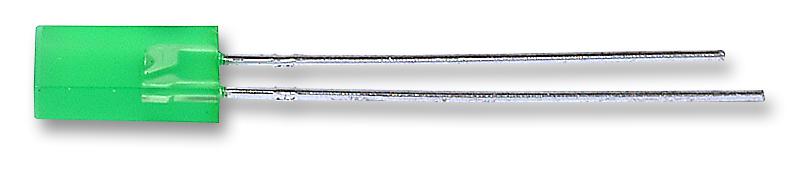

MENTOR - RTZ.2080G - Circuit Board Indicator, Green, 8 LEDs, Through Hole, 1.8mm, 20 mA, 10 mcd

  • LED Colour: Green
  • No. of LEDs: 8LEDs
  • LED Mounting: Through Hole
  • Bulb Size: 1.8mm
  • Forward Current If: 20mA
  • Luminous Intensity: 10mcd
  • Forward Voltage: 2.2V
  • Viewing Angle: 70°
  • Height: 5.08mm
  • Width: 20.32mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Display Size: 20.32mm x 5.08mm
  • External Depth: 5.5mm
  • External Length / Height: 20.32mm
  • External Width: 5.08mm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 2.5V
  • LED / Lamp Size: 1.8mm
  • LED Configuration: Array
  • LED Type: Standard
  • Lead Length: 3.3mm
  • Lead Spacing: 2.54mm
  • Lens Shape: Round
  • Luminous Intensity Min: 5mcd
  • Luminous Intensity Typ: 10mcd
  • No. of Pins: 16Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • Peak Wavelength: 568nm
  • Reverse Protection Voltage: 5V
  • Voltage Vf Typ: 2.2V
  • Wavelength Typ: 568nm
