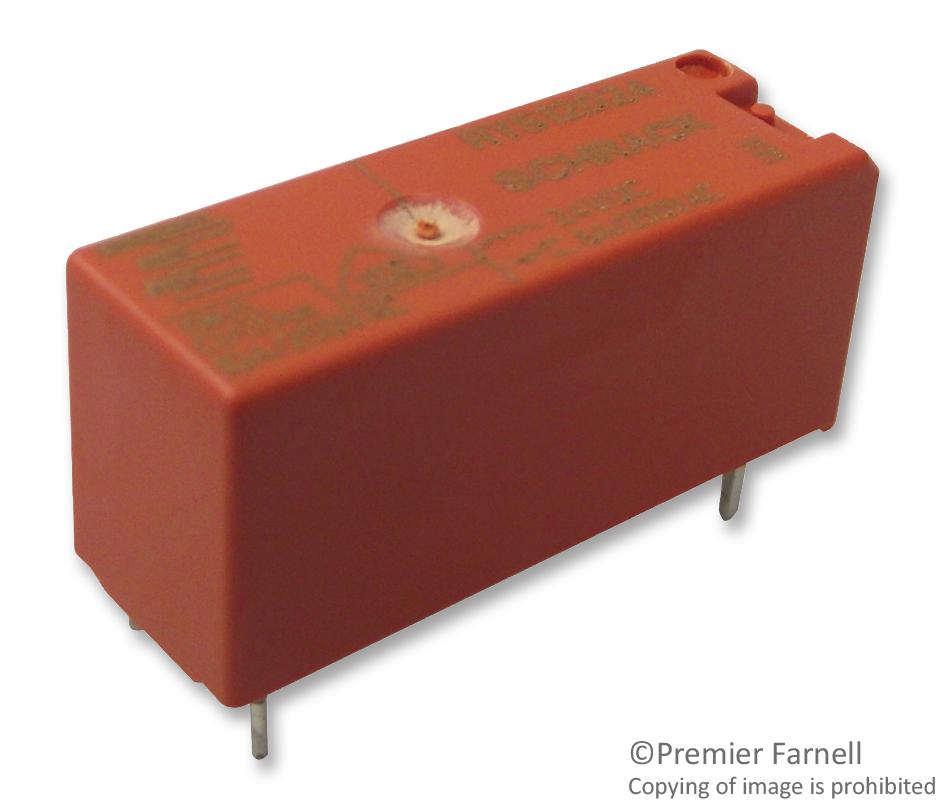

RYA31005 Relay, SPST-NO, 250VAC, 8A SCHRACK - Te Connectivity

SCHRACK - TE CONNECTIVITYUGS :1393224-7 Code de commande:9659730

Prix:
Prix ​​promotionnel€6,70

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (243 unité)

Documents et téléchargements

description

SCHRACK - TE CONNECTIVITY - 1393224-7 - General Purpose Relay, RYII Series, Power, Non Latching, SPST-NO, 5 VDC, 8 A

  • Contact Configuration: SPST-NO
  • Coil Voltage: 5VDC
  • Contact Current: 8A
  • Product Range: RYII Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: -
  • Contact Material: Silver Nickel
  • Coil Resistance: 112ohm
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: VDE
  • Approval Category: UL Recognised
  • Approvals & Standards: VDE
  • Coil Voltage VDC Nom: 5V
  • Contact Current AC Max: 8A
  • Contact Current Max: 8A
  • Contact Voltage AC Max: 400V
  • Contact Voltage AC Nom: 240V
  • Current Rating: 8A
  • DC Coil Power: 200mW
  • Dielectric Voltage Coil to Contact: 5000VAC
  • Dielectric Voltage Contact to Contact: 1000VAC
  • External Depth: 10.1mm
  • External Height: 12.3mm
  • External Length / Height: 12.3mm
  • External Width: 28.5mm
  • Lead Spacing: 5mm
  • Must Actuate Voltage: 3.5VDC
  • No. of Pins: 4Pins
  • Nom Operating Power: 223mW
  • Operating Frequency Max: 1200Hz
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Operating Time: 7ms
  • Weight: 8g
