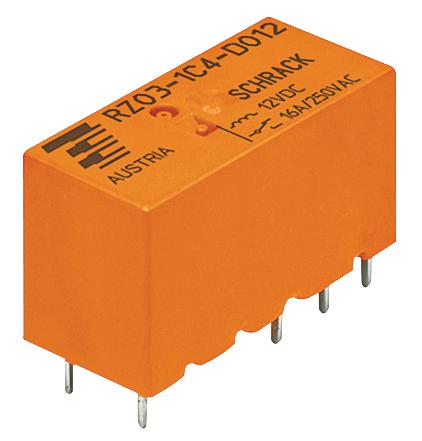

RZ01-1C4-D012 Relay, SPDT, 250VAC, 12A Te Connectivity

TE CONNECTIVITYUGS :1-1415899-0 Code de commande:1714771

Prix:
Prix ​​promotionnel€4,06

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (4661 unité)

Documents et téléchargements

description

TE CONNECTIVITY - 1-1415899-0 - General Purpose Relay, RZ Series, Power, Non Latching, SPDT, 12 VDC, 12 A

  • Contact Configuration: SPDT
  • Coil Voltage: 12VDC
  • Contact Current: 12A
  • Product Range: RZ Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: -
  • Contact Material: Silver Tin Oxide
  • Coil Resistance: 360ohm
  • SVHC: No SVHC (27-Jun-2018)
  • Coil Voltage VDC Nom: 12V
  • Contact Current AC Max: 12A
  • Contact Current Max: 12A
  • Contact Voltage AC Nom: 250V
  • External Depth: 12.7mm
  • External Height: 15.7mm
  • External Length / Height: 15.7mm
  • External Width: 29mm
  • Nom Operating Power: 400mW
  • Relay Type: Power
  • Termination Type: Through Hole
