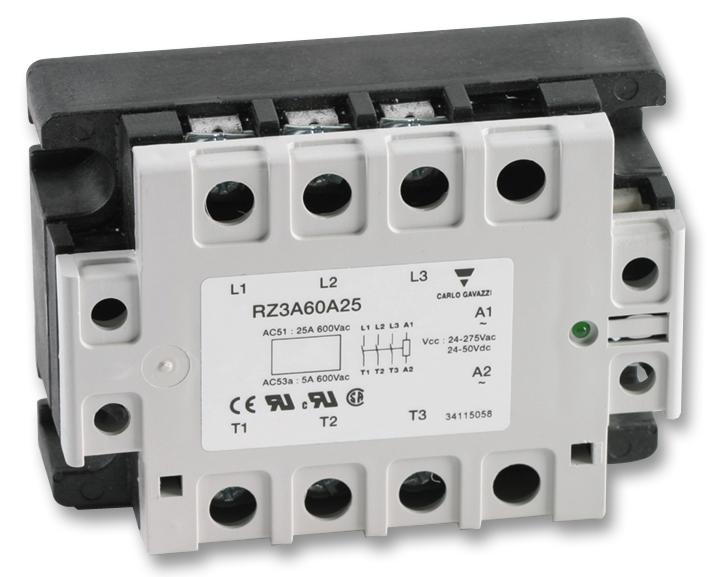

CARLO GAVAZZI - RZ3A60D25 - Solid State Relay, 3PST-NO, 25 A, 660 VAC, Panel Mount, Screw, Zero Crossing
- Contact Configuration: 3PST-NO
- Load Current: 25A
- Operating Voltage Max: 660VAC
- Relay Mounting: Panel
- Relay Terminals: Screw
- Switching Mode: Zero Crossing
- Operating Voltage Min: 42VAC
- Control Voltage Min: 4VDC
- Control Voltage Max: 32VDC
- Product Range: RZ3A Series
- SVHC: No SVHC (15-Jan-2019)
- Blocking voltage: 1200V
- Control Current Typ: 23mA
- Control Voltage DC Max: 32VDC
- Control Voltage DC Min: 4VDC
- Control Voltage Pickup: 3.8VDC
- Control Voltage Range: 4V DC to 32V DC
- Control Voltage Type: DC
- External Depth: 41mm
- External Length / Height: 103mm
- External Width: 73.5mm
- Fixing Centres LxW: 92 x 47.6 mm
- Input Voltage Max: 660VAC
- Input Voltage Min: 42VAC
- Isolation Voltage: 4kV
- Leakage Current: 3mA
- Load Current Min: 150mA
- Load Current RMS Max: 25A
- No. of Phases: Three Phase
- Operating Frequency Max: 65Hz
- Operating Frequency Min: 45Hz
- Operating Temperature Max: 80°C
- Operating Temperature Min: -30°C
- Operating Voltage Range: 42V AC to 660V AC
- Output Type: Triac
- Surge Current: 37A
