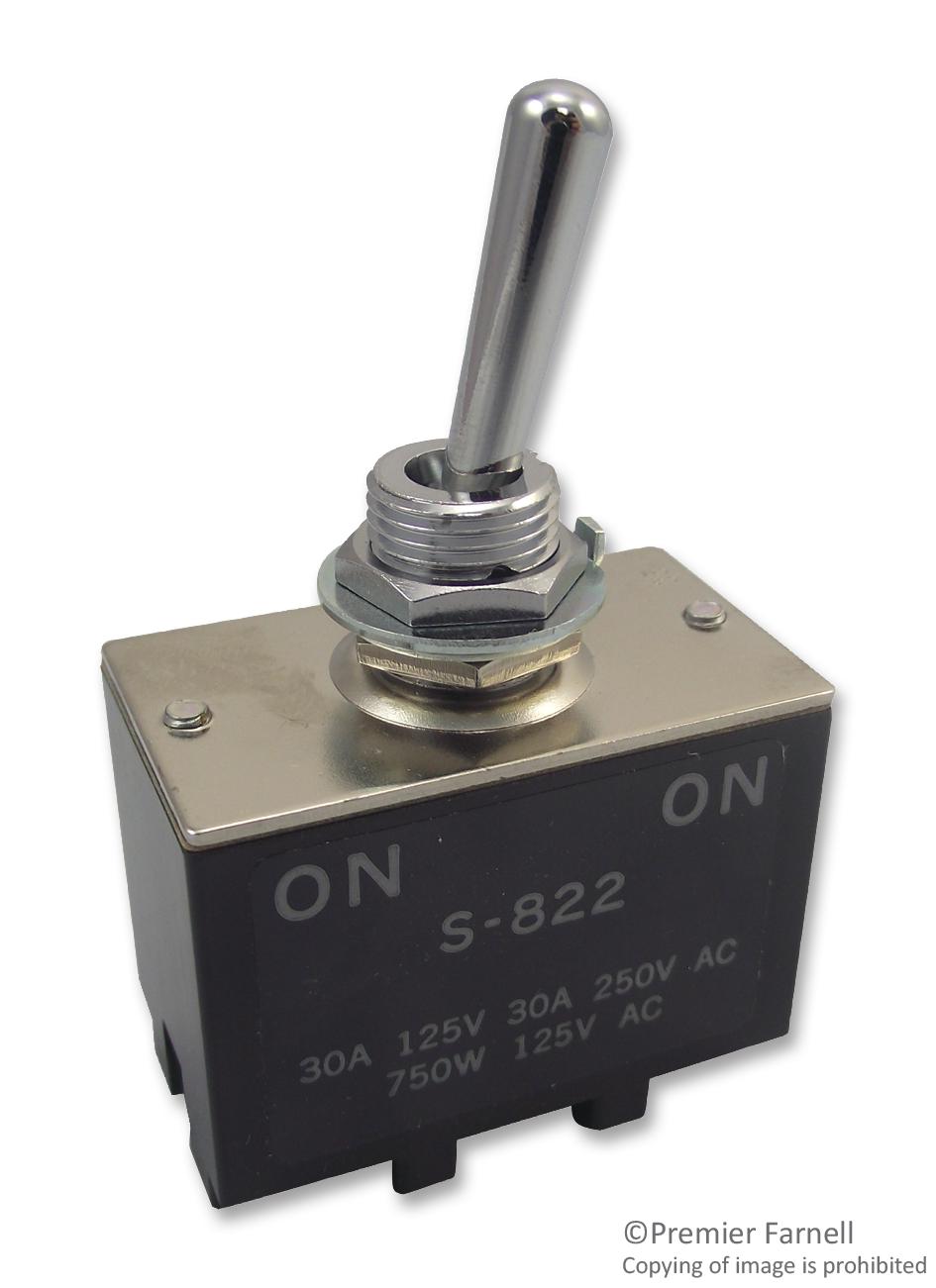

NKK SWITCHES - S822 - Toggle Switch, On-Off, DPDT, Non Illuminated, S, Panel Mount, 30 A
- Switch Operation: On-Off
- Contact Configuration: DPDT
- Illumination: Non Illuminated
- Product Range: Series S Series
- Contact Current Max: 30A
- Switch Mounting: Panel
- Contact Voltage AC Nom: 250V
- Switch Terminals: Screw
- Contact Voltage DC Nom: 30V
- SVHC: Lead (15-Jan-2019)
- Actuation Type: Lever
- Approval Bodies: CSA
- Approval Category: UL Recognised
- Bush Thread Length: 12mm
- Contact Current @ Contact Voltage AC Max: 30A
- Contact Current @ Contact Voltage DC Max: 30A
- Contact Current AC Max: 30A
- Contact Current DC Max: 30A
- Contact Resistance Max: 10mohm
- Contact Voltage AC Max: 250VAC
- Contact Voltage DC Max: 30V
- Dielectric Strength VDC: 2000VAC
- External Depth: 24mm
- External Width: 42mm
- Height: 34mm
- Inductive Current Rating: 15A
- Insulation Resistance: 1000Mohm
- Insulation Resistance Voltage: 500VDC
- Lever Length: 22mm
- Material: Melamine phenol
- No. of Electrical Operations: 10000
- No. of Mechanical Operations: 50000
- No. of Positions: 3Ways
- Operating Temperature Max: 70°C
