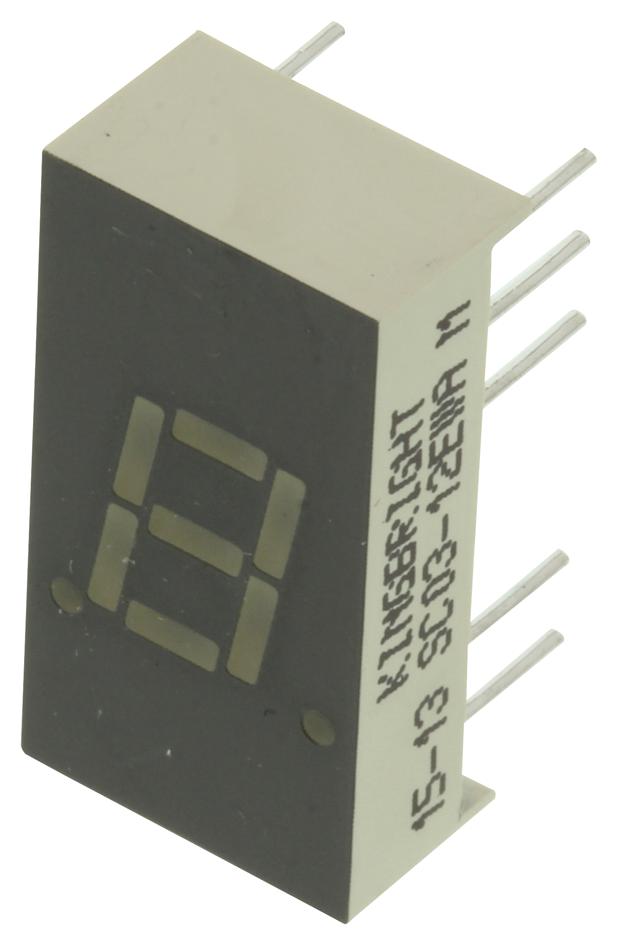

KINGBRIGHT - SC03-12EWA - 7 Segment LED Display, Mechanically Rugged, Red, 20 mA, 2 V, 8.5 mcd, 1, 7.62 mm
- LED Colour: Red
- Forward Current If: 20mA
- Forward Voltage: 2V
- Luminous Intensity: 8.5mcd
- No. of Digits / Alpha: 1
- Character Size: 7.62mm
- Common Connection: Common Cathode
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Background Colour: Black
- Character Type: 8.
- Current If Luminous Intensity: 10mA
- External Depth: 5.08mm
- External Length / Height: 19.3mm
- External Width: 10.16mm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 2.5V
- Lead Spacing: 2.54mm
- Luminous Intensity per Segment @ If Typ: 1.9mcd
- No. of Characters: 1 Character
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- PIV Max: 5V
- Peak Forward Current: 20mA
- Row Pitch: 7.62mm
