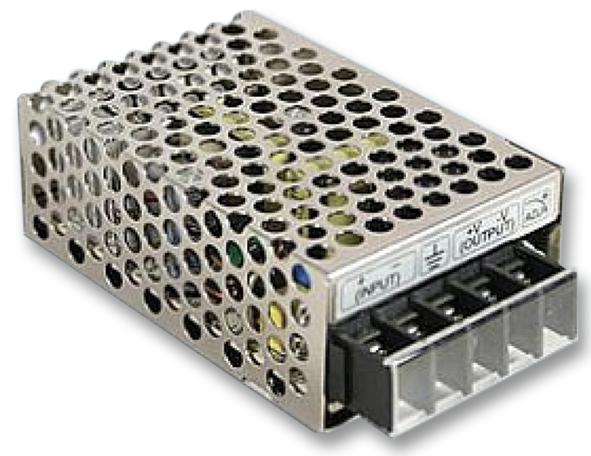

SD-15B-12 Converter, DC/DC, 15w, 12V Mean Well

MEAN WELLUGS :SD-15B-12 Code de commande:1299028

Prix:
Prix ​​promotionnel€29,48

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (51 unité)

Documents et téléchargements

description

MEAN WELL - SD-15B-12 - Isolated Chassis Mount DC/DC Converter, 2:1 Input, ITE, 2:1, 15 W, 1 Output, 12 V, 1.25 A

  • No. of Outputs: 1 Output
  • Output Power Max: 15W
  • Output Voltage - Output 1: 12V
  • Output Current - Output 1: 1.25A
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Product Range: -
  • Input Voltage DC Min: 18V
  • Input Voltage DC Max: 36V
  • DC / DC Converter Mounting: Panel
  • DC / DC Converter Output Type: Fixed
  • SVHC: No SVHC (12-Jan-2017)
  • Approval Bodies: CE
  • Approvals & Standards: CE
  • DC / DC Converter Type: Enclosed
  • Efficiency: 76%
  • External Depth: 28mm
  • External Length / Height: 79mm
  • External Width: 51mm
  • Input Voltage Max: 36V
  • Input Voltage Min: 18V
  • Isolation Voltage: 3kV
  • Line Regulation: 0.3%
  • Load Regulation: 0.3%
  • No. of Outputs: 1Outputs
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -10°C
  • Output Current: 1.25A
  • Output Current Max: 1.25A
  • Output Ripple Voltage pk-pk: 120mV
  • Output Voltage: 12V
  • Output Voltage Nom.: 12V
  • Power Rating: 15W
  • Supply Voltage: 36V
