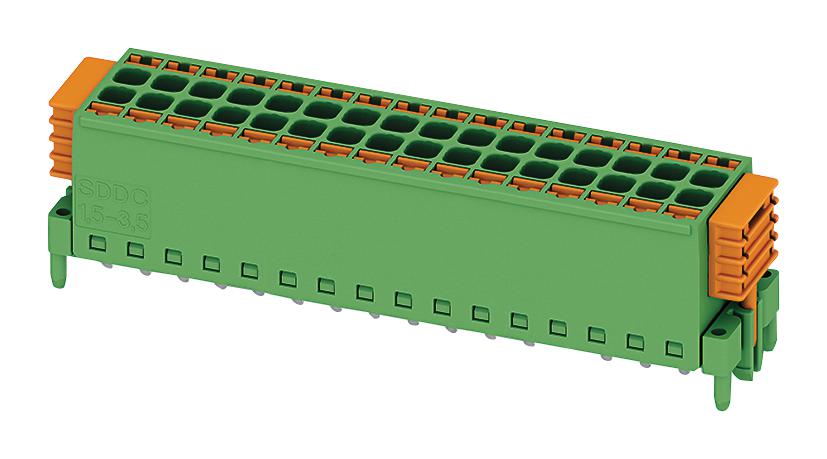

PHOENIX CONTACT - SDDC 1,5/14-PV-3,5 - Wire-To-Board Terminal Block, 3.5 mm, 14 Ways, 24 AWG, 16 AWG, 1.5 mm², Push In
- Pitch Spacing: 3.5mm
- No. of Positions: 14Ways
- Wire Size AWG Min: 24AWG
- Wire Size AWG Max: 16AWG
- Conductor Area CSA: 1.5mm²
- Wire Connection Method: Push In
- Rated Current: 8A
- Rated Voltage: 160V
- Block Orientation: Press Fit Vertical
- Product Range: SKEDD
- SVHC: No SVHC (15-Jan-2019)
