SDI2415 SSR, 240VAC SENSATA/CRYDOM

SENSATA/CRYDOMUGS :SDI2415 Code de commande:1200272

Prix:
Prix ​​promotionnel€42,86

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (20 unité)

Documents et téléchargements

description

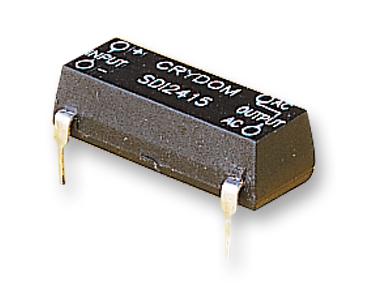

SENSATA/CRYDOM - SDI2415 - Solid State Relay, SDI Series, DIP, SPST-NO, 1.5 A, 280 Vrms, PCB, Through Hole, Zero Crossing

  • Contact Configuration: SPST-NO
  • Load Current: 1.5A
  • Operating Voltage Max: 280Vrms
  • Relay Mounting: PCB
  • Relay Terminals: Through Hole
  • Switching Mode: Zero Crossing
  • Operating Voltage Min: 12Vrms
  • Control Voltage Min: -
  • Control Voltage Max: -
  • Product Range: SDI Series
  • SVHC: No SVHC (12-Jan-2017)
  • Control Current Max: 50mA
  • Control Current Typ: 10mA
  • Control Voltage DC Max: 10VDC
  • Control Voltage DC Min: 3VDC
  • Control Voltage Range: 3V DC to 10V DC
  • External Depth: 4.8mm
  • External Length / Height: 21.6mm
  • External Width: 6.7mm
  • Isolation Voltage: 3.75kV
  • Load Current Max: 1.5A
  • Load Current Min: 0.025A
  • Load Current RMS Max: 1.5A
  • Load Voltage Range: 12V AC to 280V AC
  • Operating Voltage Range: 12Vrms to 280Vrms
  • Output Type: Thyristor
  • RMS Load Current Min: 0.025A
  • RMS Load Voltage Max: 280V
  • RMS Load Voltage Min: 12V
  • Rate of Voltage Change dv / dt: 500V/µs
  • Surge Current: 30A
