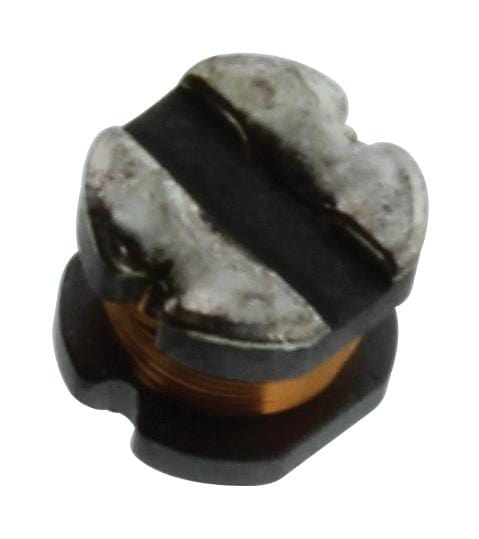

BOURNS - SDR0503-391KL - Power Inductor (SMD), 390 µH, 190 mA, Unshielded, 240 mA, SDR0503, 5mm x 4.8mm x 3mm
- Inductance: 390µH
- RMS Current (Irms): 190mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 240mA
- Product Range: SDR0503 Series
- Power Inductor Case: 5mm x 4.8mm x 3mm
- DC Resistance Max: 3.7ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- Q Factor: 30
- Q Test Frequency: 796kHz
- Self Resonant Frequency Min: 5MHz
