description

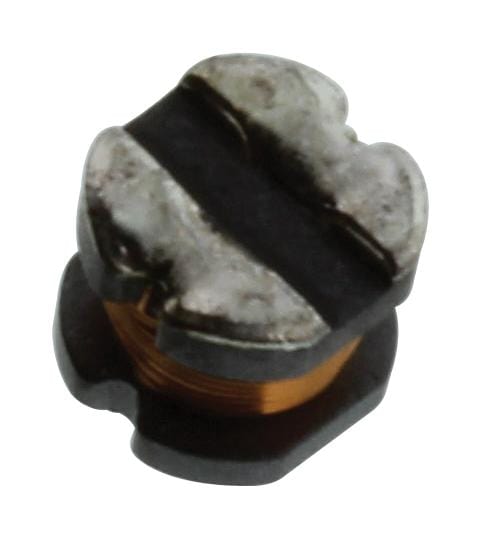

BOURNS - SDR0503-821KL - Power Inductor (SMD), 820 µH, 120 mA, Unshielded, 155 mA, SDR0503
- Inductance: 820µH
- RMS Current (Irms): 120mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 155mA
- Product Range: SDR0503 Series
- Power Inductor Case: 5mm x 4.8mm x 3mm
- DC Resistance Max: 10ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- Q Factor: 40
- Q Test Frequency: 796kHz
- Self Resonant Frequency Min: 3MHz
