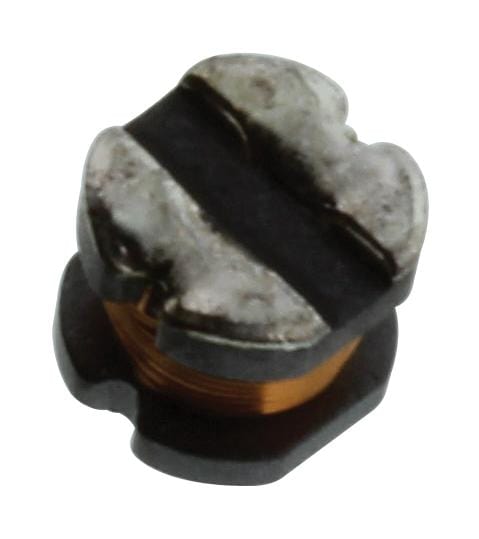

BOURNS - SDR0603-150ML - Power Inductor (SMD), 15 µH, 930 mA, Unshielded, 1.1 A, SDR0603, 5.8mm x 5.8mm x 3.9mm
- Inductance: 15µH
- RMS Current (Irms): 930mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 1.1A
- Product Range: SDR0603 Series
- Power Inductor Case: 5.8mm x 5.8mm x 3.9mm
- DC Resistance Max: 0.18ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2018)
- Q Factor: 22
- Q Test Frequency: 2.52MHz
- Self Resonant Frequency Min: 28MHz
