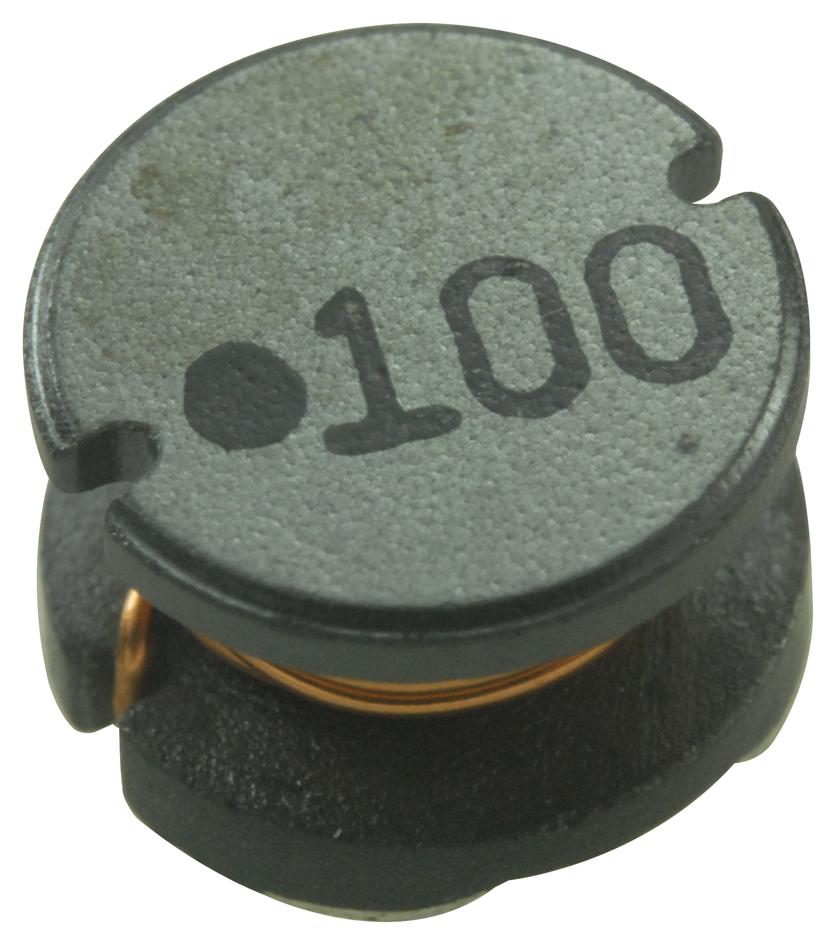

SDR0805-100ml Inductor, 10UH, 3.2A, SMD Bourns

BOURNSUGS :SDR0805-100ML Code de commande:1828026

Prix:
Prix ​​promotionnel€0,90

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (978 unité)

Documents et téléchargements

description

BOURNS - SDR0805-100ML - Power Inductor (SMD), 10 µH, 2.3 A, Unshielded, 3.2 A, SDR0805

  • Inductance: 10µH
  • RMS Current (Irms): 2.3A
  • Inductor Construction: Unshielded
  • Saturation Current (Isat): 3.2A
  • Product Range: SDR0805 Series
  • Power Inductor Case: 7.8mm x 7.8mm x 5.3mm
  • DC Resistance Max: 0.07ohm
  • Inductance Tolerance: ± 20%
  • SVHC: No SVHC (07-Jul-2017)
  • External Depth: 7.8mm
  • External Length / Height: 5.3mm
  • External Width: 7.8mm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -40°C
  • Q Factor: 25
  • Q Test Frequency: 2.52MHz
  • Resonant Frequency: 22MHz
  • Self Resonant Frequency Min: 22MHz
  • Test Frequency: 2.52MHz
