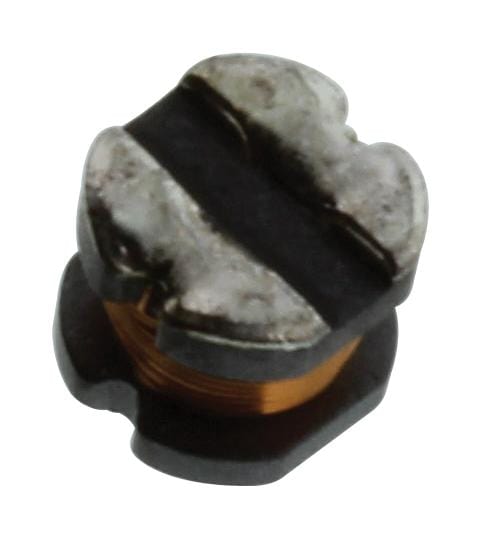

BOURNS - SDR1307-271KL - Power Inductor (SMD), 270 µH, 1.2 A, Unshielded, 1.8 A, SDR1307
- Inductance: 270µH
- RMS Current (Irms): 1.2A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 1.8A
- Product Range: SDR1307 Series
- Power Inductor Case: 13mm x 13mm x 7mm
- DC Resistance Max: 0.41ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- Q Factor: 15
- Q Test Frequency: 796kHz
- Self Resonant Frequency Min: 3.5MHz
