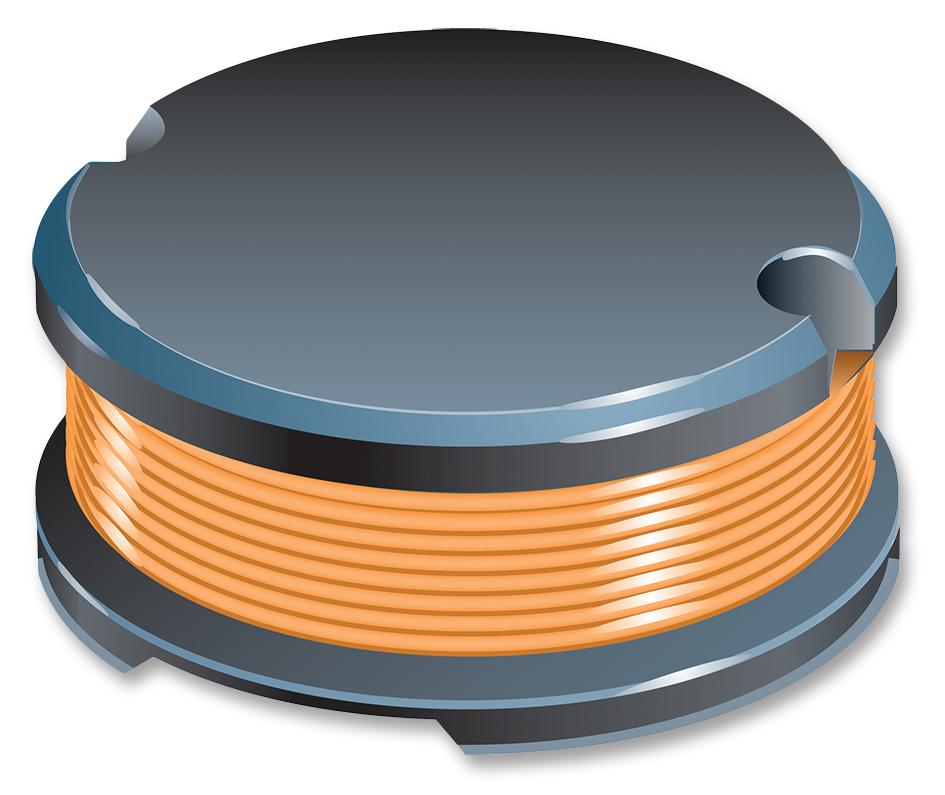

BOURNS - SDR1307A-221K - Power Inductor (SMD), 220 µH, 1.3 A, Unshielded, 2.1 A, SDR1307A, 13mm x 7mm
- Inductance: 220µH
- RMS Current (Irms): 1.3A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 2.1A
- Product Range: SDR1307A Series
- Power Inductor Case: 13mm x 7mm
- DC Resistance Max: 0.36ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- Automotive Qualification Standard: AEC-Q200
