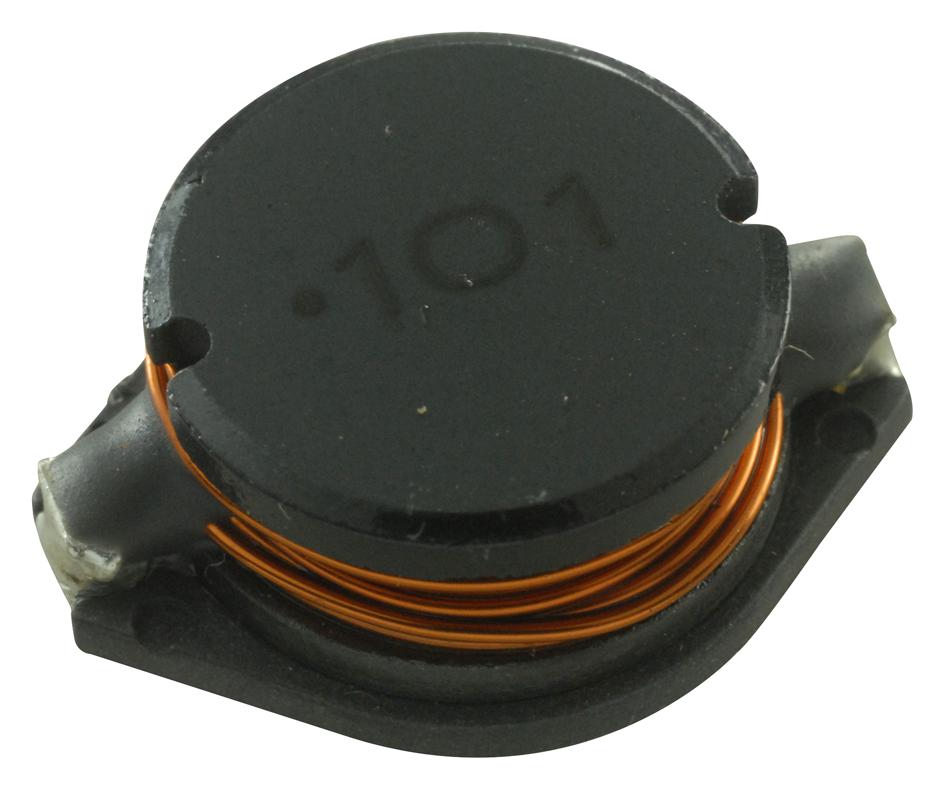

BOURNS - SDR1806-101KL - Power Inductor (SMD), 100 µH, 1.7 A, Unshielded, 3.2 A, SDR1806
- Inductance: 100µH
- RMS Current (Irms): 1.7A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 3.2A
- Product Range: SDR1806 Series
- Power Inductor Case: 18.3mm x 14mm x 6.6mm
- DC Resistance Max: 0.19ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 2Pins
- Q Factor: 25
- Q Test Frequency: 796kHz
- Self Resonant Frequency Min: 7MHz
