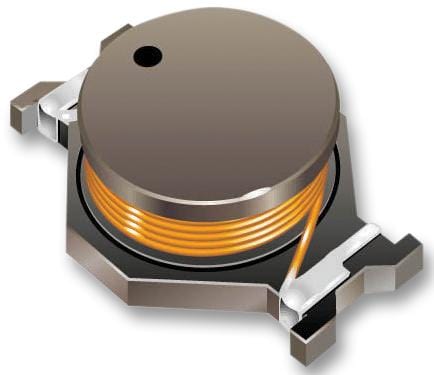

BOURNS - SDR2207-181KL - Power Inductor (SMD), 180 µH, 1.3 A, Unshielded, 2.5 A, SDR2207, 22mm x 15mm x 7mm
- Inductance: 180µH
- RMS Current (Irms): 1.3A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 2.5A
- Product Range: SDR2207 Series
- Power Inductor Case: 22mm x 15mm x 7mm
- DC Resistance Max: 0.3ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- Q Factor: 20
- Q Test Frequency: 2MHz
- Self Resonant Frequency Min: 5.7MHz
