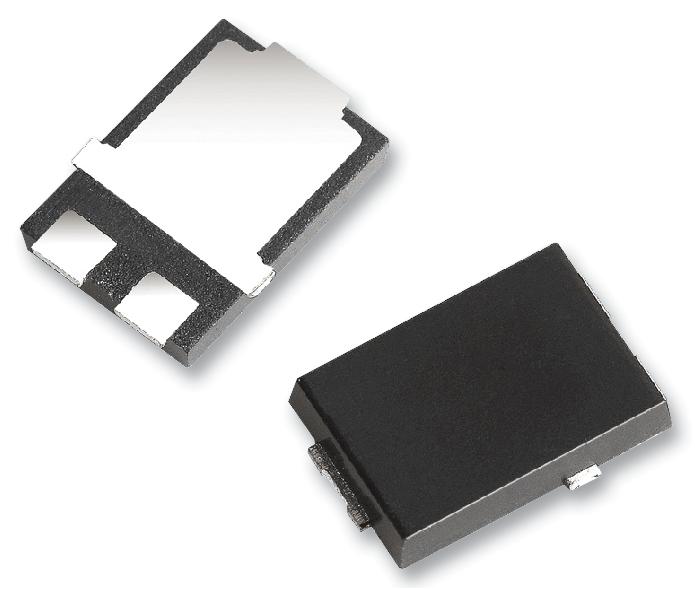

VISHAY - SE10PD-M3/84A - Standard Recovery Diode, 200 V, 1 A, Single, 1.05 V, 780 ns, 25 A
- Repetitive Reverse Voltage Vrrm Max: 200V
- Forward Current If(AV): 1A
- Diode Configuration: Single
- Forward Voltage VF Max: 1.05V
- Reverse Recovery Time trr Max: 780ns
- Forward Surge Current Ifsm Max: 25A
- Operating Temperature Max: 175°C
- Diode Case Style: DO-220AA
- No. of Pins: 2Pins
- Product Range: SE10P Series
- Automotive Qualification Standard: -
- SVHC: Lead (27-Jun-2018)
- Diode Type: ESD Protection
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
