SER2011-202MLD INDUCTOR, 2UH, 40A, 20%, PWR, 56MHZ COILCRAFT

COILCRAFTUGS :SER2011-202MLD Code de commande:2288868

Prix:
Prix ​​promotionnel€7,03

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (400 unité)

Documents et téléchargements

description

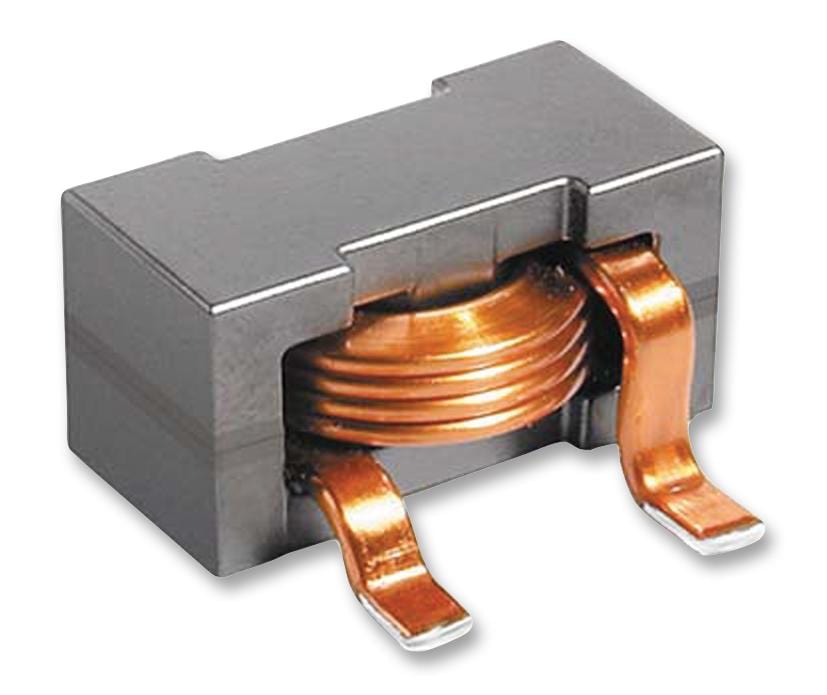

COILCRAFT - SER2011-202MLD - Power Inductor (SMD), 2 µH, 40 A, Shielded, 37 A, SER2000, 19.18mm x 9.27mm x 10.67mm

  • Inductance: 2µH
  • RMS Current (Irms): 40A
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 37A
  • Product Range: SER2000 Series
  • Power Inductor Case: 19.18mm x 9.27mm x 10.67mm
  • DC Resistance Max: 0.00134ohm
  • Inductance Tolerance: ± 20%
  • SVHC: No SVHC (15-Jan-2019)
  • Automotive Qualification Standard: AEC-Q200
  • Self Resonant Frequency Min: 56MHz
