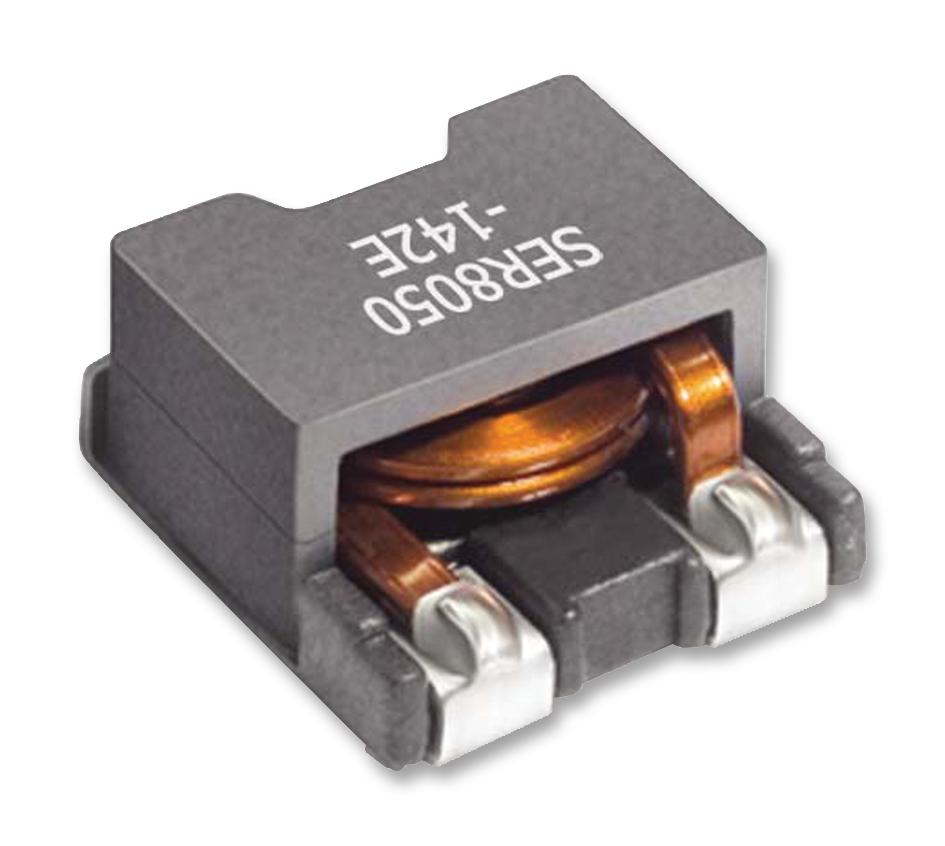

COILCRAFT - SER8050-811MEC - Power Inductor (SMD), 800 nH, 9.43 A, Shielded, 22.48 A, SER80xx, 8.8mm x 8.5mm x 5mm
- Inductance: 800nH
- RMS Current (Irms): 9.43A
- Inductor Construction: Shielded
- Saturation Current (Isat): 22.48A
- Product Range: SER80xx Series
- Power Inductor Case: 8.8mm x 8.5mm x 5mm
- DC Resistance Max: 0.00588ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Self Resonant Frequency Min: 125MHz
