SF23080AT/2082HBL.GN Fan, 80mm, 230VAC multicomp

MULTICOMPUGS :SF23080AT/2082HBL.GN Code de commande:9606548

Prix:
Prix ​​promotionnel€39,87

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (440 unité)

Documents et téléchargements

description

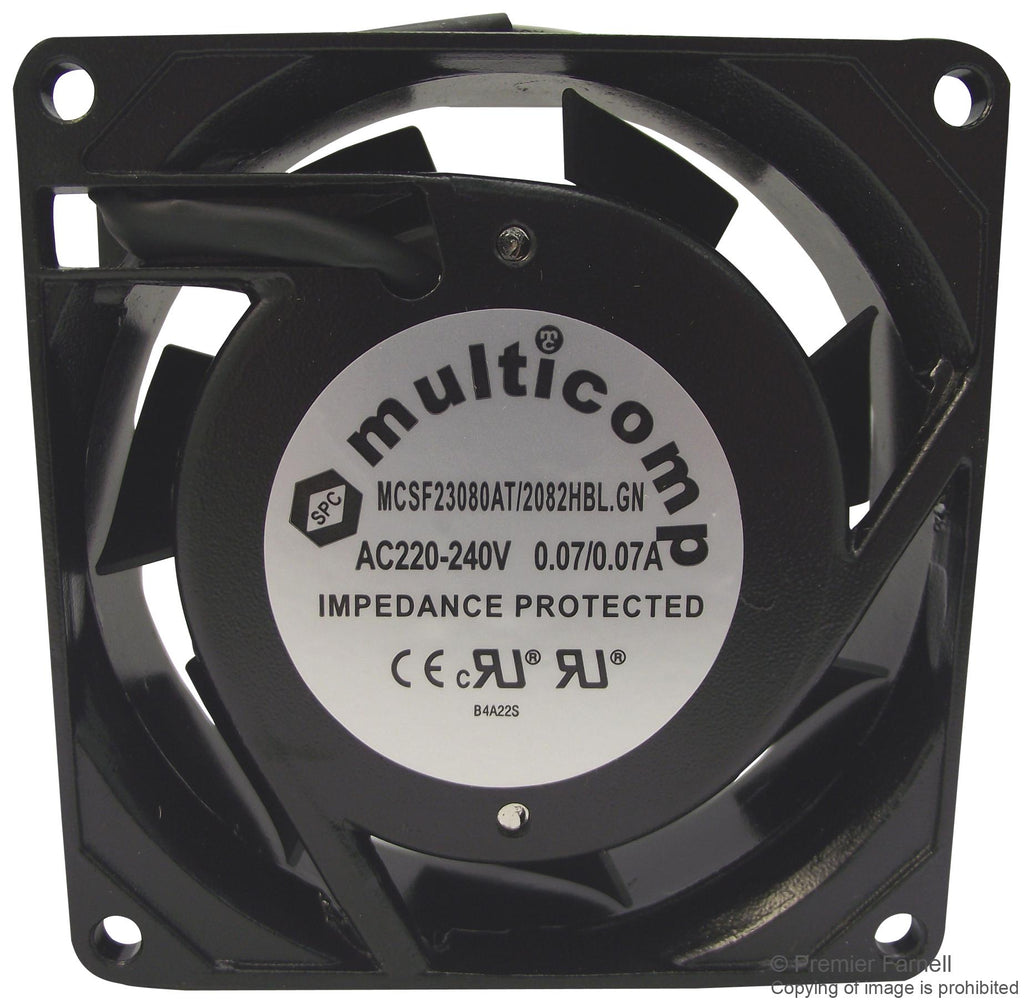

MULTICOMP - SF23080AT/2082HBL.GN - AC Axial Fan, 220V to 240V, Square, 80 mm, 25 mm, Ball Bearing, 22 CFM

  • Supply Voltage: 230V
  • Current Type: AC
  • Fan Frame Size: 80mm
  • External Depth: 25mm
  • Noise Rating: 34.5dBA
  • Flow Rate - Imperial: 22cu.ft/min
  • Flow Rate - Metric: 0.62m³/min
  • Bearing Type: Ball
  • Power Connection Type: 2 Lead Wires
  • Current Rating: 70mA
  • Product Range: Slimline Series
  • Power Rating: -
  • IP Rating: -
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: CSA, UL
  • External Height: 80mm
  • External Width: 80mm
  • Fixing Centres: 71.5mm
  • Fixing Hole Diameter: 4.3mm
  • Flammability Rating: UL94V-0
  • Frame Dimensions: 80mm x 80mm x 25mm
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -10°C
  • Operating life Time: 30000h
  • Panel Cutout Diameter: 77mm
  • Power Consumption: 14W
  • Speed Range Max: 2900rpm
  • Type: Slimline
