SFH4350 Infrared Emitter, 850nm, T-1 AMS OSRAM Group

AMS OSRAM GROUPUGS :SFH4350 Code de commande:1573493

Prix:
Prix ​​promotionnel€1,67

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (5366 unité)

Documents et téléchargements

description

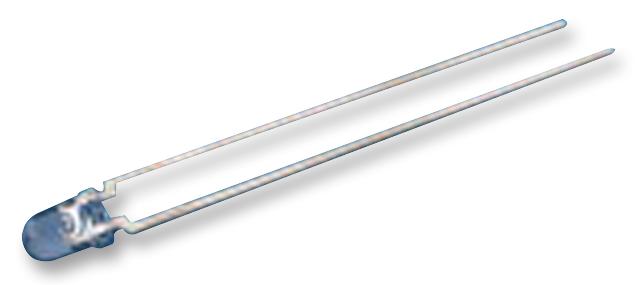

AMS OSRAM GROUP - SFH4350 - Infrared Emitter, 850 nm, 13 °, T-1 (3mm), 70 mW/Sr, 12 ns, 12 ns

  • Peak Wavelength: 850nm
  • Angle of Half Intensity: 13°
  • Diode Case Style: T-1 (3mm)
  • Radiant Intensity (Ie): 70mW/Sr
  • Rise Time: 12ns
  • Fall Time tf: 12ns
  • Forward Current If(AV): 100mA
  • Forward Voltage VF Max: 1.5V
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 100°C
  • Automotive Qualification Standard: -
  • Product Range: -
  • MSL: -
  • SVHC: No SVHC (17-Dec-2015)
  • Head Diameter: 3mm
  • Head Length: 5.2mm
  • LED / Lamp Size: 3mm
  • Lead Diameter: 0.6mm
  • Lead Spacing: 2.54mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -40°C to +100°C
  • Power Dissipation Pd: 180mW
  • Viewing Angle: 13°
  • Wavelength Typ: 850nm
