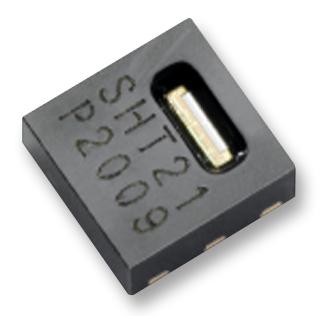

SHT21P Humidity/Temp Sensor, Analogue, DFN-6 SENSIRION

SENSIRIONUGS :SHT21P Code de commande:1888015

Prix:
Prix ​​promotionnel€12,90

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (142 unité)

Documents et téléchargements

description

SENSIRION - SHT21P - Temperature and Humidity Sensor, 0 to 100% RH, -40°C to 125°C, PWM, Analogue, DFN-6, 2.1 to 3.6 V

  • Humidity Range: 0% to 100% Relative Humidity
  • Humidity Accuracy: ± 2% RH
  • Temperature Accuracy: ± 0.3°C
  • RH Response Time: 8s
  • Temperature Response Time: 30s
  • Sensor Interface Type: PWM
  • Sensor Output Type: Analogue
  • Sensor Case Style: DFN
  • No. of Pins: 6Pins
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Supply Voltage Min: 2.1V
  • Supply Voltage Max: 3.6V
  • Product Range: SHT2x Series
  • RoHS Phthalates Compliant: To Be Advised
  • MSL: MSL 2 - 1 year
  • SVHC: No SVHC (12-Jan-2017)
  • Accuracy: 2% RH
  • Accuracy %: 2%
  • Response Time: 5s
  • Sensor Terminals: SMD
  • Supply Voltage: 3VDC
  • Supply Voltage Range: 2.1V to 3.6V
