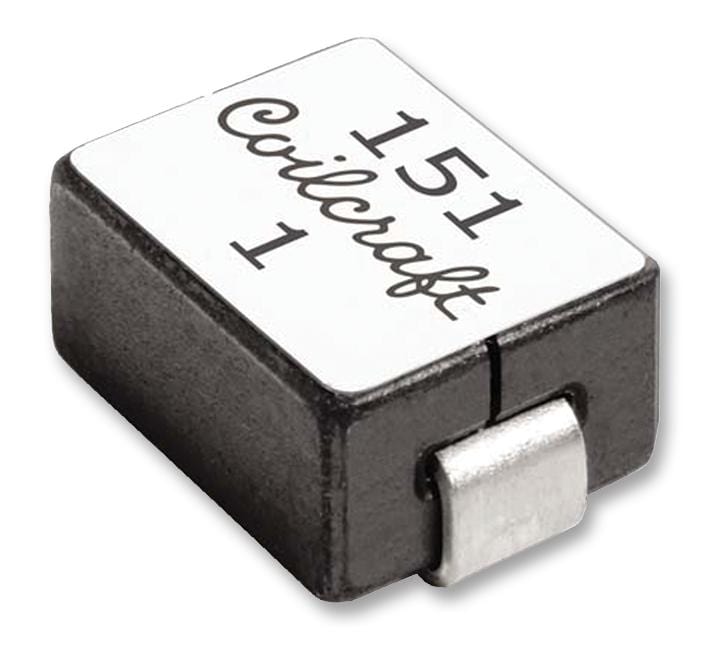

COILCRAFT - SLC1049-151MLC - Power Inductor (SMD), 150 nH, 43 A, Shielded, 30 A, SLC1049, 10.2mm x 6.88mm x 5.16mm
- Inductance: 150nH
- RMS Current (Irms): 43A
- Inductor Construction: Shielded
- Saturation Current (Isat): 30A
- Product Range: SLC1049 Series
- Power Inductor Case: 10.2mm x 6.88mm x 5.16mm
- DC Resistance Max: 246µohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Self Resonant Frequency Min: 133MHz
