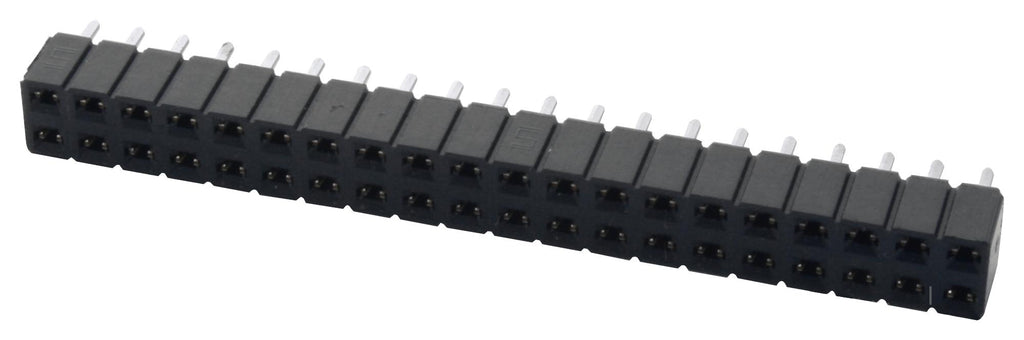

SAMTEC - SLW-120-01-G-D - PCB Receptacle, Square Post, Board-to-Board, 2.54 mm, 2 Rows, 40 Contacts, Through Hole Mount, SLW
- Pitch Spacing: 2.54mm
- No. of Contacts: 40Contacts
- Gender: Receptacle
- Product Range: SLW Series
- Contact Termination Type: Through Hole
- No. of Rows: 2Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2018)
- Colour: Black
- Contact Resistance: 10mohm
- Contact Termination: Through Hole Vertical
- Current Rating: 3A
- Lead Spacing: 2.54mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Row Pitch: 2.54mm
- Termination Method: Solder
