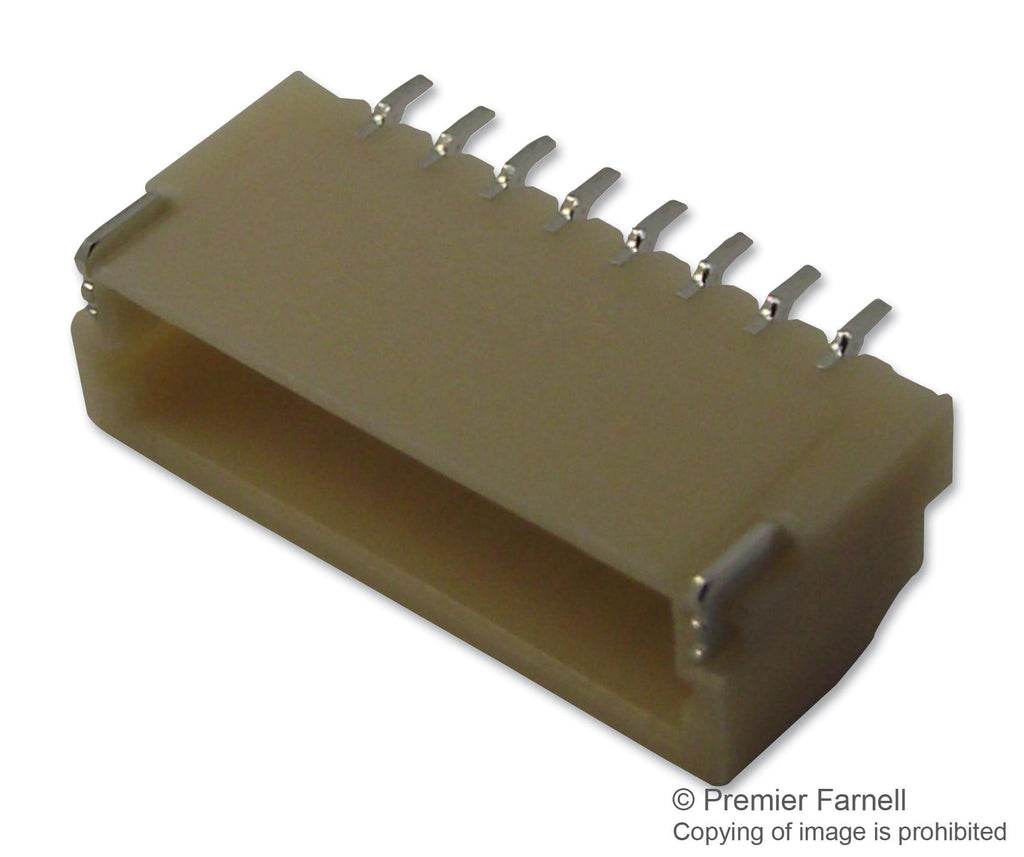

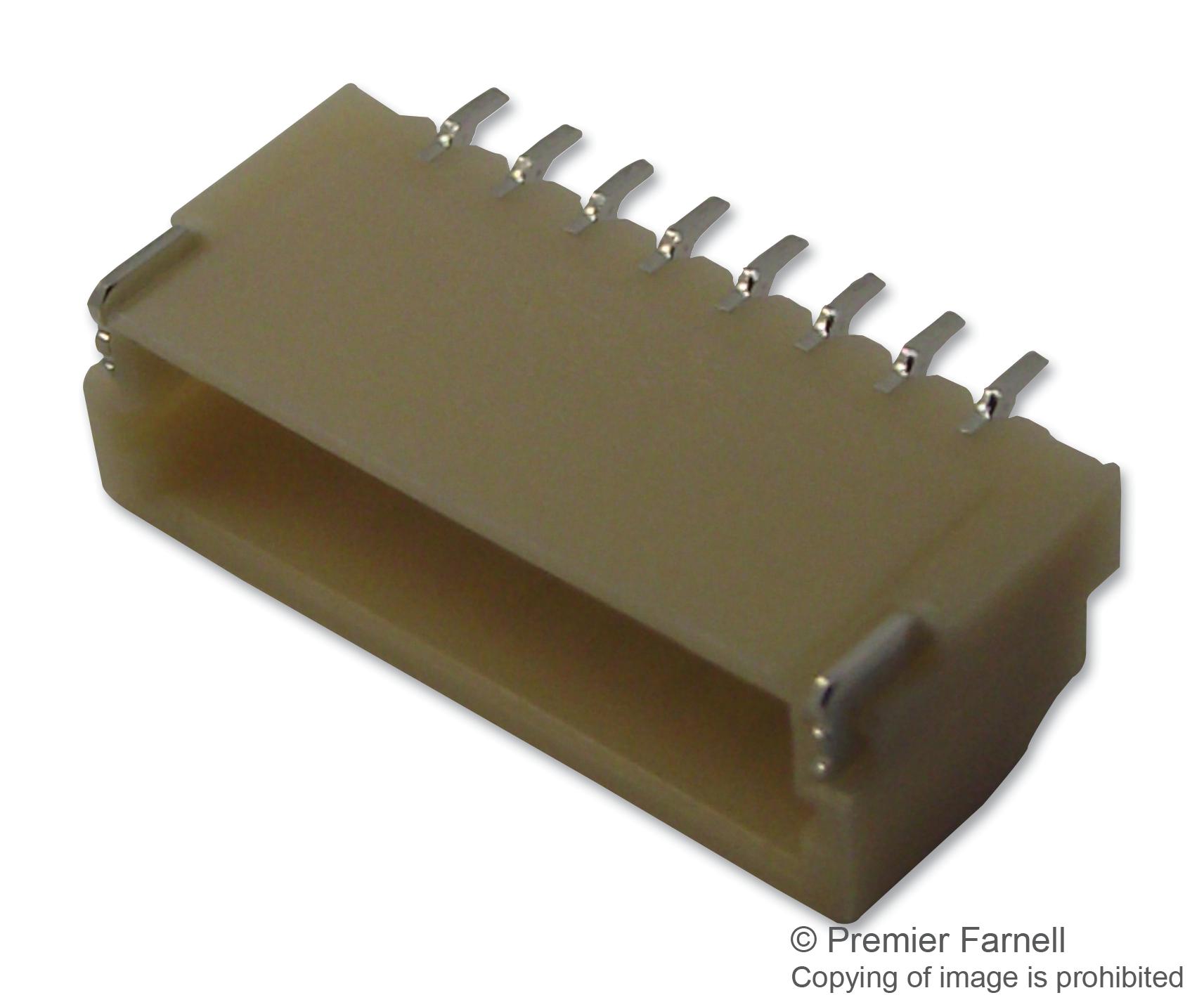

SM08B-SRSS-TB(LF)(Sn) Header, R/A, 8WAY JST (Japan Solderless Terminals)

JST (JAPAN SOLDERLESS TERMINALS)UGS :SM08B-SRSS-TB(LF)(SN) Code de commande:1679124

Prix:
Prix ​​promotionnel€1,41

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (75798 unité)

Documents et téléchargements

description

JST (JAPAN SOLDERLESS TERMINALS) - SM08B-SRSS-TB(LF)(SN) - Pin Header, Right Angle, Wire-to-Board, 1 mm, 1 Rows, 8 Contacts, Surface Mount Right Angle, SR

  • Pitch Spacing: 1mm
  • No. of Contacts: 8Contacts
  • Gender: Header
  • Product Range: SR Series
  • Contact Termination Type: Surface Mount
  • No. of Rows: 1Rows
  • Contact Plating: Tin Plated Contacts
  • Contact Material: Copper
  • SVHC: No SVHC (27-Jun-2018)
  • Colour: Natural
  • Contact Resistance: 20mohm
  • Current Rating: 1A
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 100Mohm
  • Material: Polyamide
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Voltage Rating VAC: 50V
  • Withstand Voltage: 500V
