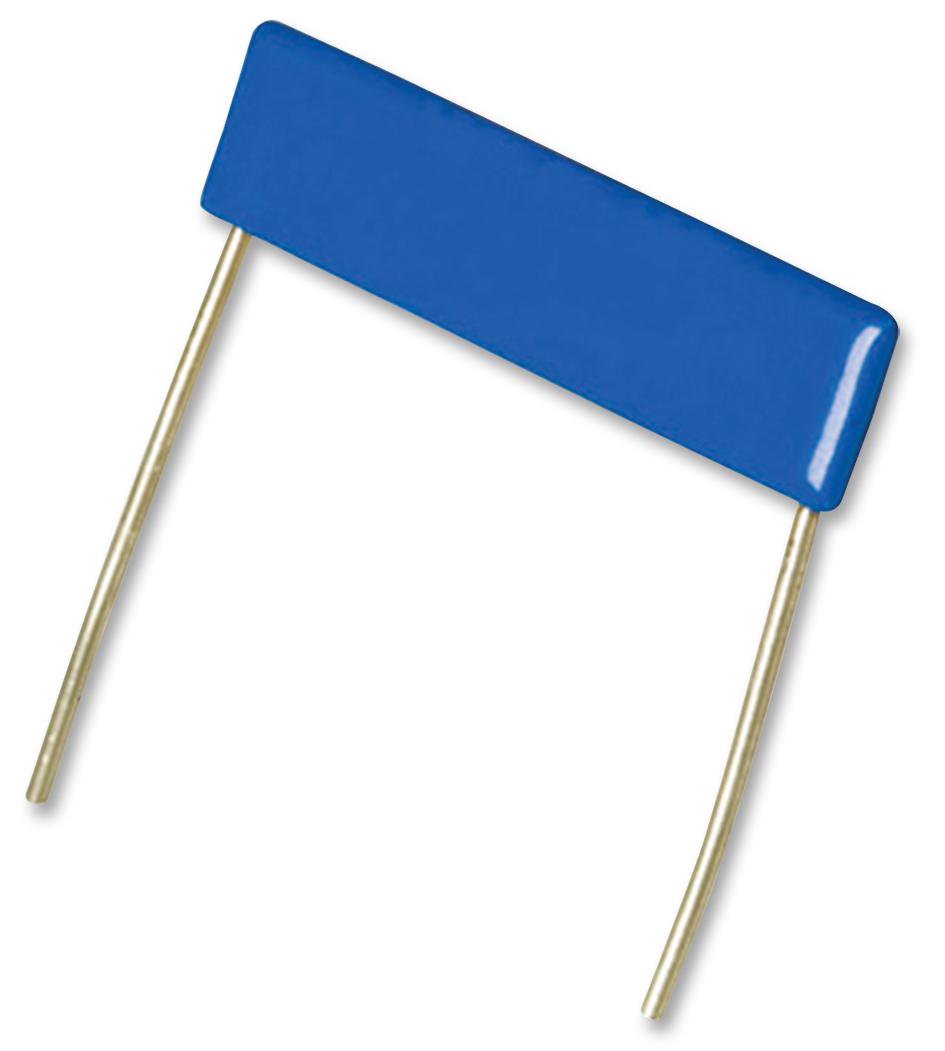

OHMITE - SM104035006FE - Through Hole Resistor, Slim-Mox, 0.5 Gohm, Slim-Mox, 1.5 W, ± 1%, Radial Leaded, 10 kV
- Resistance: 0.5Gohm
- Product Range: Slim-Mox Series
- Power Rating: 1.5W
- Resistance Tolerance: ± 1%
- Resistor Case Style: Radial Leaded
- Voltage Rating: 10kV
- Resistor Element Material: Thick Film
- Temperature Coefficient: ± 25ppm/°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 8.64mm
- External Length / Height: 27.43mm
- External Width: 2.54mm
- Height: 27.43mm
- Lead Diameter: 0.813mm
- Lead Length: 33mm
- Lead Spacing: 22.86mm
- No. of Pins: 2Pins
- Operating Temperature Max: 110°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +110°C
- Resistor Mounting: Through Hole
