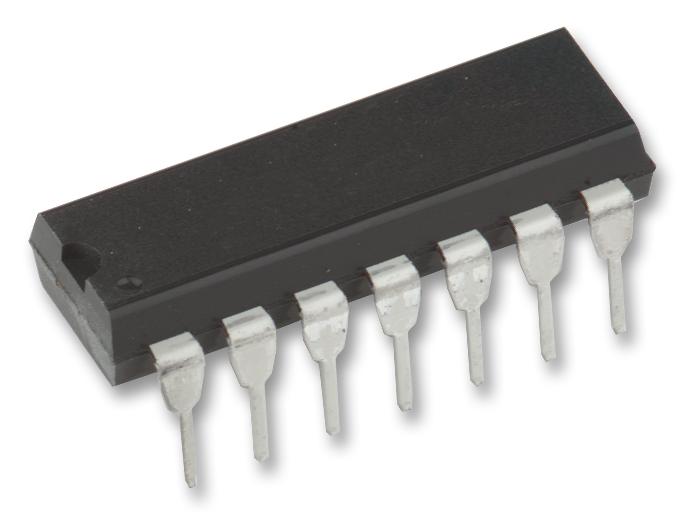

TEXAS INSTRUMENTS - SN74HCT00N - Logic IC, NAND Gate, Quad, 2 Inputs, 14 Pins, DIP, 74HCT00
- Logic Family / Base Number: 74HCT00
- Logic Type: NAND
- Output Current: 4mA
- No. of Inputs: 2
- Supply Voltage Min: 4.5V
- Supply Voltage Max: 5.5V
- Logic Case Style: DIP
- No. of Pins: 14Pins
- Logic IC Family: 74HCT
- Logic IC Base Number: 7400
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Base Number: 74
- Logic Function Number: 7400
- Logic IC Base Number: 7400
- Logic IC Function: Quadruple 2-Input Positive NAND-Gates
- Operating Temperature Range: -40°C to +85°C
- Supply Voltage Range: 4.5V to 5.5V
