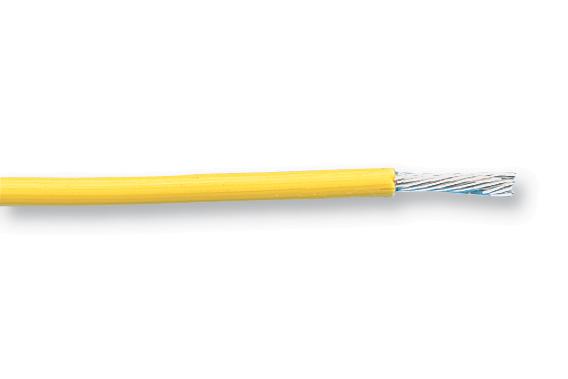

SPC00453A006 25m Wire, PTFE, C, Yellow, 19/0.2mm, 25m Brand Rex

BRAND REXUGS :SPC00453A006 25M Code de commande:1184147

Prix:
Prix ​​promotionnel€89,34

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seulement 3 produits disponibles

Documenten en downloads

description

BRAND REX - SPC00453A006 25M - Wire, Stranded, Equipment, BS3G210 Type C, PTFE, Yellow, 20 AWG, 0.597 mm², 82 ft, 25 m

  • Jacket Material: PTFE
  • Jacket Colour: Yellow
  • Wire Gauge: 20AWG
  • Conductor Area CSA: 0.597mm²
  • Reel Length (Imperial): 82ft
  • Reel Length (Metric): 25m
  • No. of Max Strands x Strand Size: 19 x 0.2mm
  • Voltage Rating: 1kV
  • Conductor Material: Silver Plated Copper
  • External Diameter: 1.92mm
  • Approval Specification: BS 3G 210 Type C
  • Product Range: SPC PTFE Series
  • SVHC: No SVHC (07-Jul-2017)
  • Conductor Make-up: 19 / 0.2mm
  • Conductor Plating: Silver
  • Current Rating: 11A
  • Operating Temperature Max: 190°C
  • Operating Temperature Min: -50°C
  • Outer Diameter: 1.92mm
  • Standard: BS3G210, Def std 61-12 pt 8
  • Voltage Rating VAC: 1kV
  • Wire Size: 20AWG
