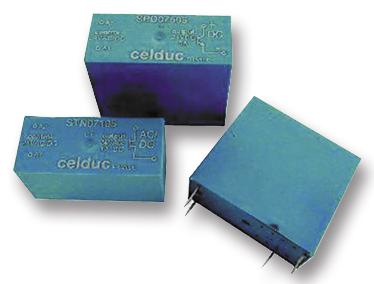

CELDUC - SPD03505 - Solid State Relay, 5 A, 30 V, PCB, Through Hole
- Contact Configuration: -
- Load Current: 5A
- Operating Voltage Max: 30V
- Relay Mounting: PCB
- Relay Terminals: Through Hole
- Switching Mode: -
- Operating Voltage Min: 0V
- Control Voltage Min: 12VDC
- Control Voltage Max: 30VDC
- Product Range: -
- SVHC: No SVHC (07-Jul-2017)
- Control Voltage DC Max: 30VDC
- Control Voltage DC Min: 12VDC
- Control Voltage Range: 12V DC to 30V DC
- Control Voltage Type: DC
- External Depth: 12.7mm
- External Length / Height: 29mm
- External Width: 25.4mm
- Input Voltage: 12V DC to 30V DC
- Insulation Resistance: 2.1kohm
- Isolation Voltage: 2.5kV
- Load Current Min: 1mA
- Load Current RMS Max: 5A
- Load Voltage Range: 0V DC to 30V DC
- Operating Frequency: 100Hz
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- RMS Load Current Min: 1mA
- RMS Load Voltage Max: 30VDC
- RMS Load Voltage Min: 0VAC
- Resistance: 2100ohm
- Turn Off Time: 600µs
- Turn On Time: 50µs
