SPUN190900 Switch, 2POLE, Mom Alps Alpine

ALPS ALPINEUGS :SPUN190900 Code de commande:1435766

Prix:
Prix ​​promotionnel€5,23

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2899 unité)

Documents et téléchargements

description

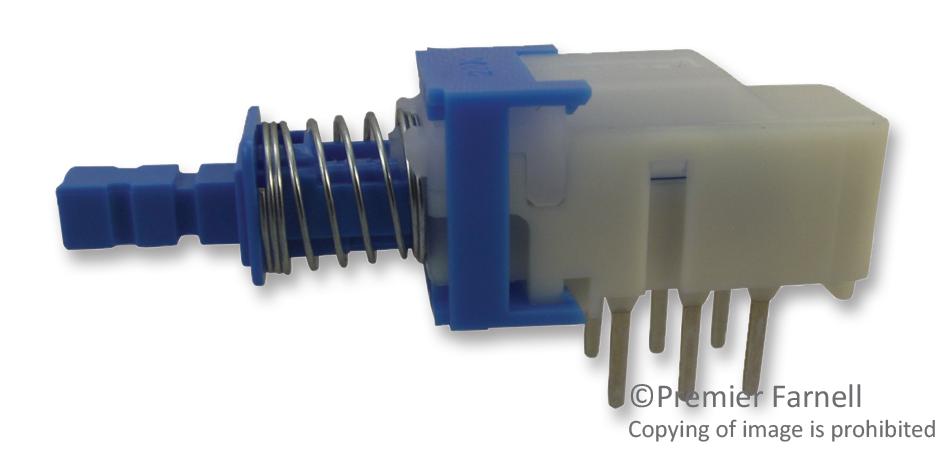

ALPS ALPINE - SPUN190900 - Pushbutton Switch, SPUN, DPDT, Momentary, Square

  • Switch Operation: Momentary
  • Contact Configuration: DPDT
  • Contact Voltage AC Nom: -
  • Contact Voltage DC Nom: 30V
  • Contact Current Max: 100mA
  • Switch Terminals: PC Pin
  • Product Range: SPUN Series
  • SVHC: No SVHC (20-Jun-2016)
  • Actuation Type: Square
  • Body Depth: 24mm
  • Body Width: 10mm
  • Contact Current @ Contact Voltage DC Min: 50µA
  • Contact Current DC Max: 100mA
  • Contact Resistance Max: 20mohm
  • Contact Voltage DC Min: 3VDC
  • Contact Voltage VDC: 30V
  • External Depth: 42mm
  • External Length / Height: 13mm
  • Illumination Colour: Non-illuminated
  • No. of Electrical Operations: 10000
  • No. of Mechanical Operations: 30000
  • Operating Force: 2N
  • Operating Force Max: 3N
  • Operating Force Min: 1N
  • Operating Temperature Max: 40°C
  • Operating Temperature Min: -20°C
  • Pushbutton Actuator Style: Square
  • Pushbutton Switch Type: Standard
  • Switch Mounting: Through Hole
  • Travel: 2.5mm
