SQP7S-12RJB15 Res, 12R, 5%, 7w, Axial, Wirewound TT Electronics / WELWYN

TT ELECTRONICS / WELWYNUGS :SQP7S-12RJB15 Code de commande:1292532

Prix:
Prix ​​promotionnel€2,78

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (3455 unité)

Documents et téléchargements

description

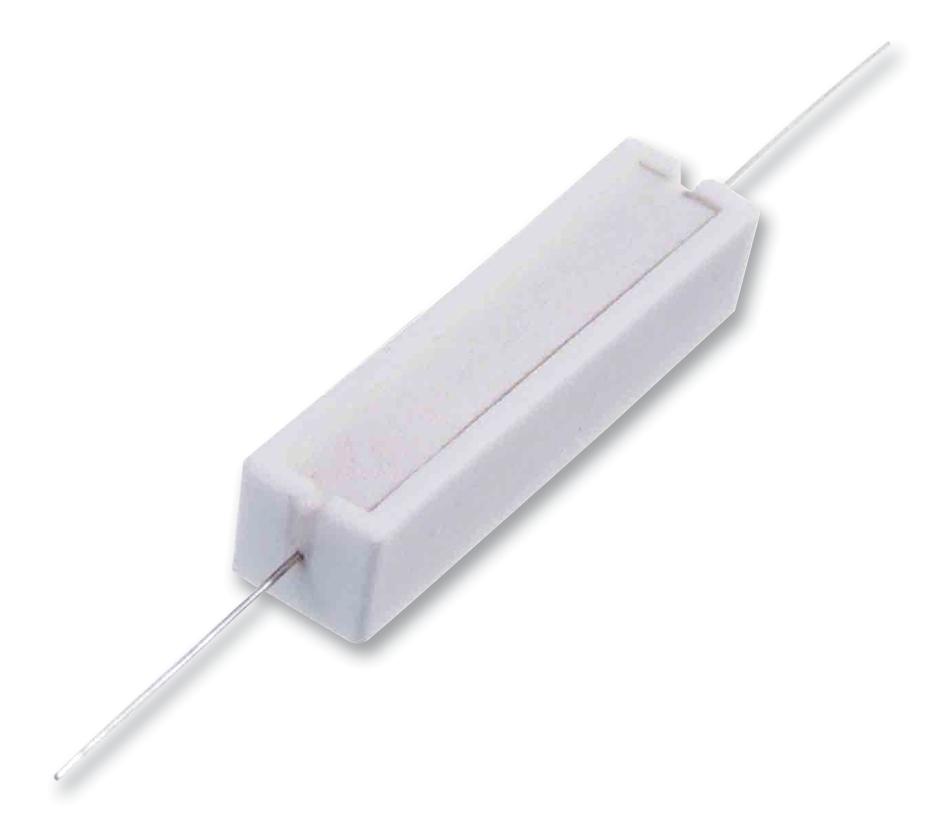

TT ELECTRONICS / WELWYN - SQP7S-12RJB15 - Through Hole Resistor, 12 ohm, SQP, 7 W, ± 5%, Axial Leaded, 350 V

  • Resistance: 12ohm
  • Product Range: SQP Series
  • Power Rating: 7W
  • Resistance Tolerance: ± 5%
  • Resistor Case Style: Axial Leaded
  • Voltage Rating: 350V
  • Resistor Element Material: Wirewound
  • Temperature Coefficient: ± 200ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Element Limiting Voltage: 350V
  • External Depth: 10mm
  • External Length / Height: 26mm
  • External Width: 10mm
  • Full Power Rating Temperature: 70°C
  • Lead Diameter: 0.75mm
  • Lead Length: 35mm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +155°C
  • Resistor Mounting: Through Hole
  • Temperature Coeff. +: 200ppm/°C
  • Temperature Coeff. -: 200ppm/°C
  • Tolerance +: 5%
  • Tolerance -: 5%
