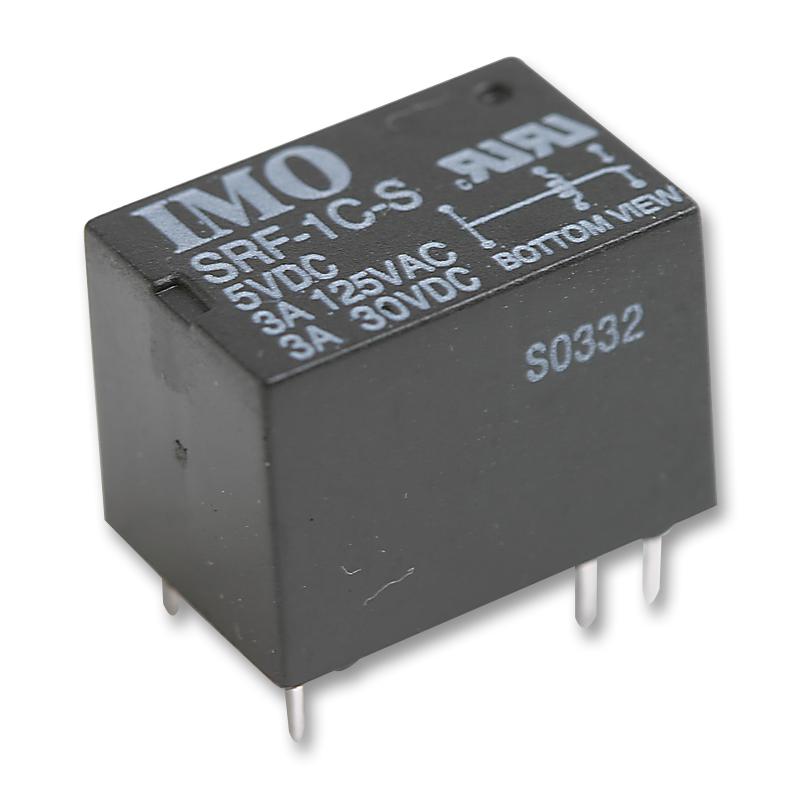

SRF-1C-SL-5VDC Relay, SPDT, 240Vac, 30Vdc, 1A IMO Precision Controls

IMO PRECISION CONTROLSUGS :SRF-1C-SL-5VDC Code de commande:1094008

Prix:
Prix ​​promotionnel€5,90

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (240 unité)

Documents et téléchargements

description

IMO PRECISION CONTROLS - SRF-1C-SL-5VDC - General Purpose Relay, SRF Series, Power, Non Latching, SPDT, 5 VDC, 1 A

  • Contact Configuration: SPDT
  • Coil Voltage: 5VDC
  • Contact Current: 1A
  • Product Range: SRF Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 240VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Nickel
  • Coil Resistance: 120ohm
  • SVHC: No SVHC (07-Jul-2017)
  • Approval Bodies: CUR
  • Coil Current: 44.7mA
  • Coil Operating Lower Percent Limit: 75%
  • Coil Operating Upper Percent Limit: 130%
  • Coil Voltage VDC Nom: 5V
  • Contact Current AC Max: 2A
  • Contact Current DC Max: 2A
  • Contact Current Max: 2A
  • Contact Voltage AC Max: 120V
  • Contact Voltage AC Nom: 120V
  • Contact Voltage DC Max: 60V
  • Contact Voltage DC Nom: 60V
  • DC Coil Power: 200mW
  • External Depth: 10.9mm
  • External Height: 12mm
  • External Length / Height: 12mm
  • External Width: 15.7mm
  • Nom Operating Power: 200mW
  • Operating Temperature Max: 55°C
  • Operating Temperature Min: -25°C
  • Operating Time: 10ms
  • Relay Type: Power - General Purpose
  • Release Time: 5ms
