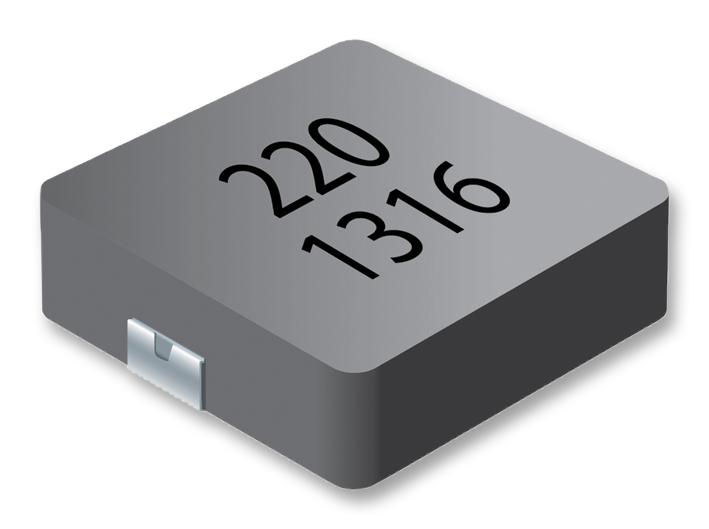

BOURNS - SRP1038A-R22M - Power Inductor (SMD), 220 nH, 35 A, Shielded, 60 A, SRP1038A, 11mm x 10mm x 3.8mm
- Inductance: 220nH
- RMS Current (Irms): 35A
- Inductor Construction: Shielded
- Saturation Current (Isat): 60A
- Product Range: SRP1038A Series
- Power Inductor Case: 11mm x 10mm x 3.8mm
- DC Resistance Max: 0.001ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2018)
- Automotive Qualification Standard: AEC-Q200
