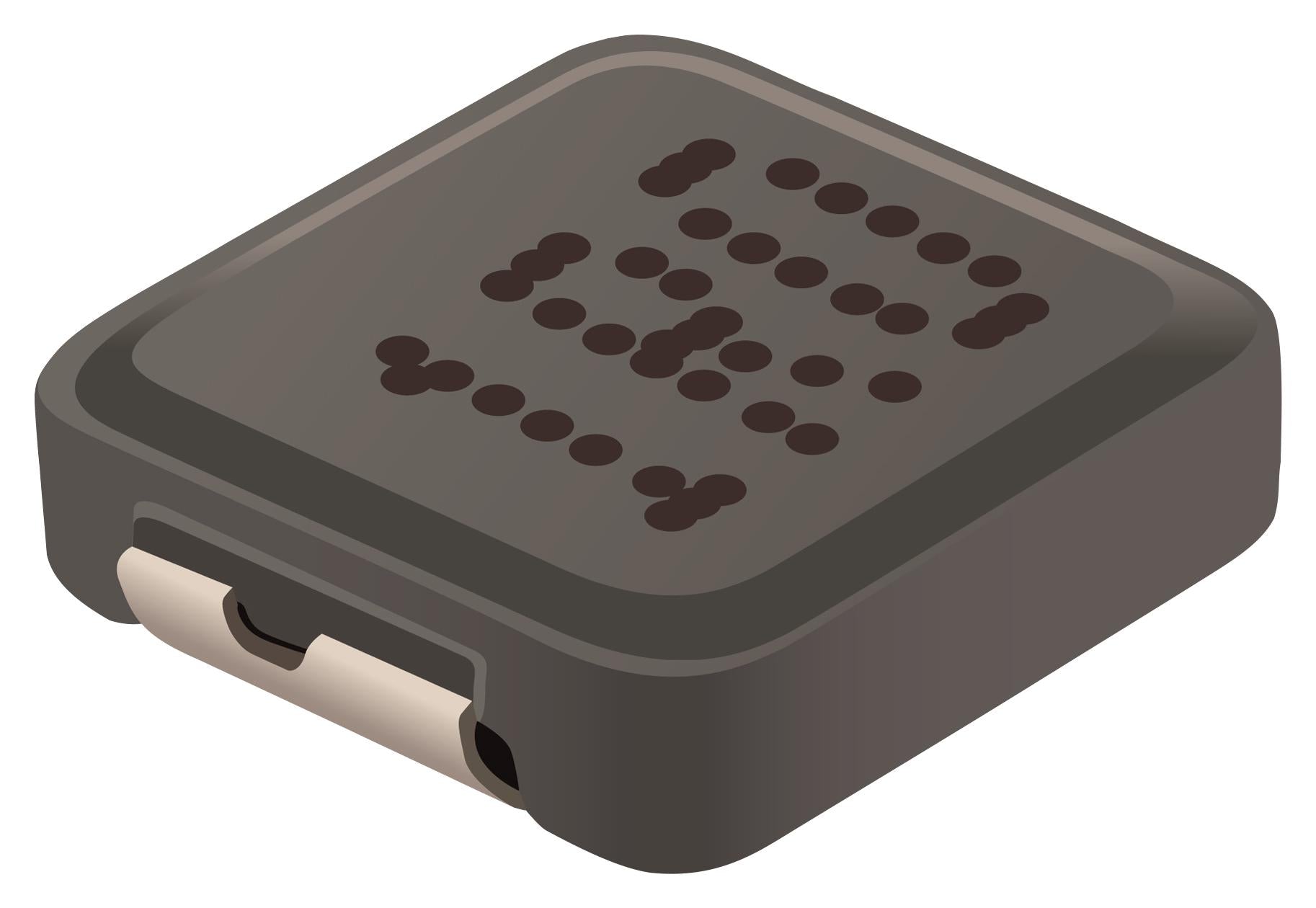

BOURNS - SRP5015TA-1R0M - Power Inductor (SMD), 1 µH, 6 A, Shielded, 9 A, SRP5015TA, 5.7mm x 5.2mm x 1.3mm
- Inductance: 1µH
- RMS Current (Irms): 6A
- Inductor Construction: Shielded
- Saturation Current (Isat): 9A
- Product Range: SRP5015TA Series
- Power Inductor Case: 5.7mm x 5.2mm x 1.3mm
- DC Resistance Max: 0.0253ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2018)
- Automotive Qualification Standard: AEC-Q200
