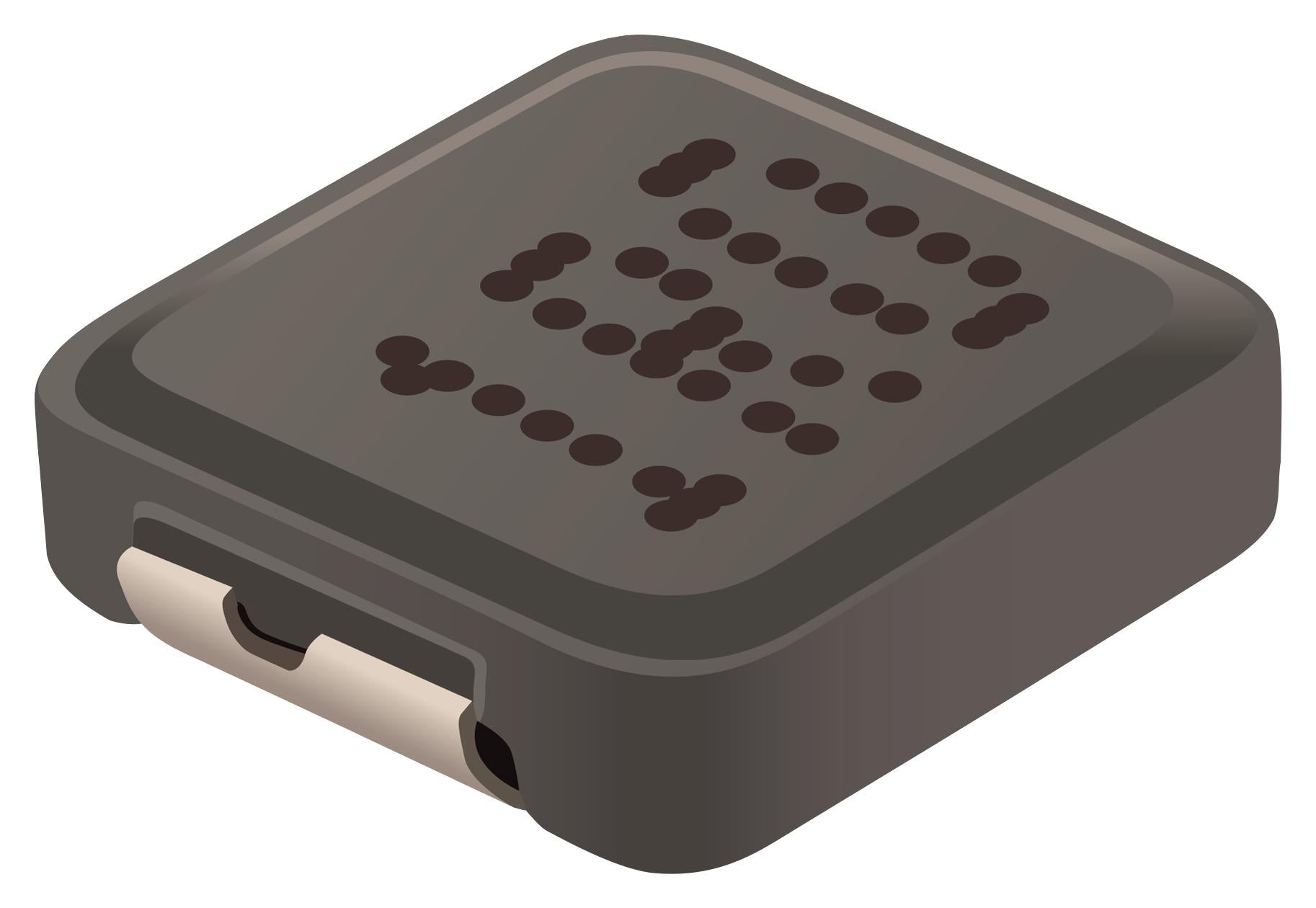

BOURNS - SRP5015TA-R15Y - Power Inductor (SMD), 150 nH, 16 A, Shielded, 25 A, SRP5015TA
- Inductance: 150nH
- RMS Current (Irms): 16A
- Inductor Construction: Shielded
- Saturation Current (Isat): 25A
- Product Range: SRP5015TA Series
- Power Inductor Case: 5.7mm x 5.2mm x 1.3mm
- DC Resistance Max: 0.0041ohm
- Inductance Tolerance: ± 30%
- SVHC: No SVHC (15-Jan-2018)
- Automotive Qualification Standard: AEC-Q200
