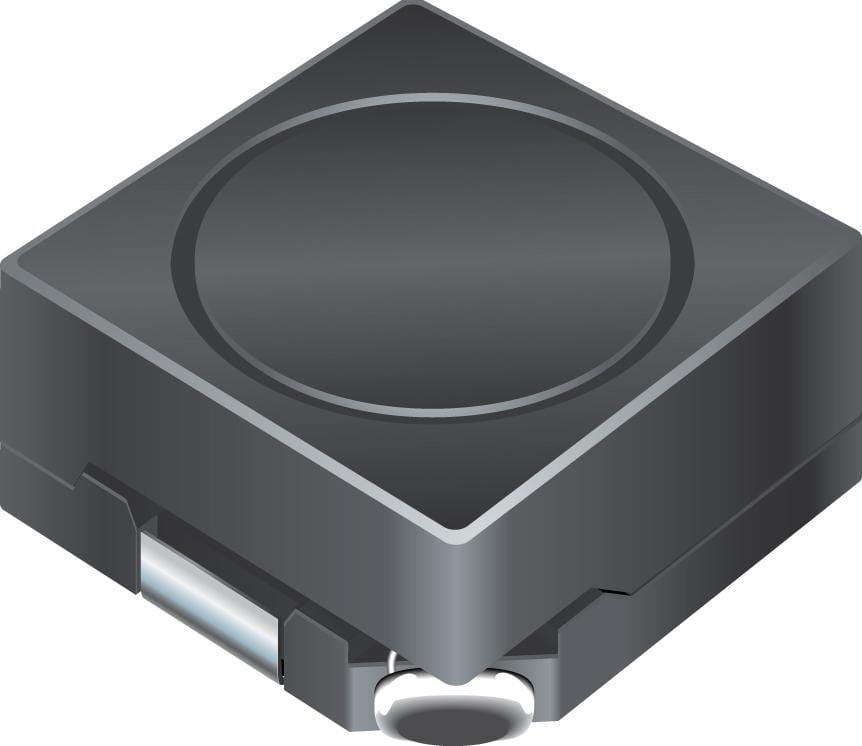

BOURNS - SRR0603-151KL - Power Inductor (SMD), 150 µH, 250 mA, Shielded, 390 mA, SRR0603, 6.5mm x 6.5mm x 3.3mm
- Inductance: 150µH
- RMS Current (Irms): 250mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 390mA
- Product Range: SRR0603 Series
- Power Inductor Case: 6.5mm x 6.5mm x 3.3mm
- DC Resistance Max: 1.9ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 2Pins
- Q Factor: 22
- Q Test Frequency: 796kHz
- Self Resonant Frequency Min: 8MHz
